Altova UModel 2025 Enterprise Edition

Interface IUMLGuiDiagram

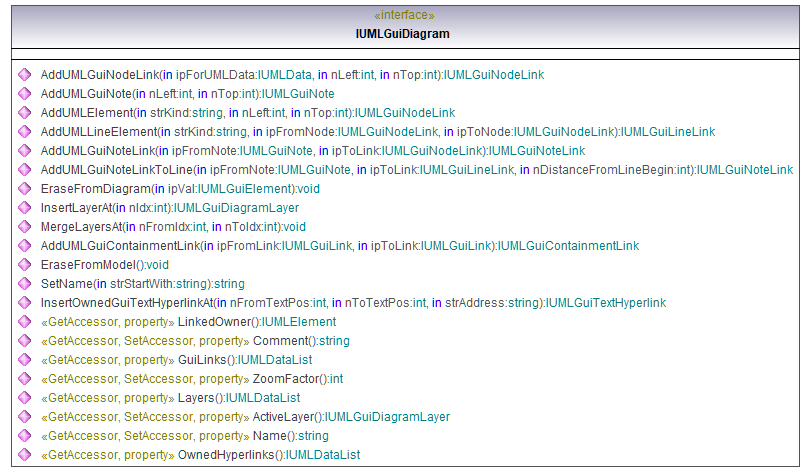

diagram

UModelAPI_diagrams/UModelAPI_p295.png

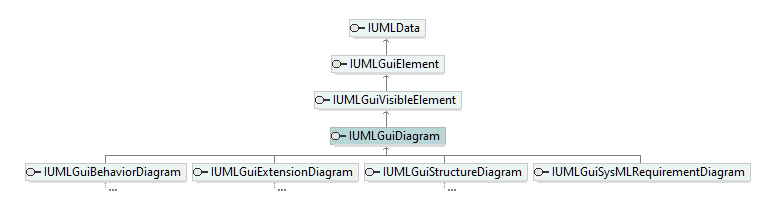

hierarchy

UModelAPI_diagrams/UModelAPI_p296.png

typedElements

documentation

Represents an UML diagram and contains all layers, nodes (represented as IUMLGuiNodeLink) and lines (represented as IUMLGuiLineLink).Use the property GuiLinks to access these.



Operation IUMLGuiDiagram::ActiveLayer

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLGuiDiagramLayer









Operation IUMLGuiDiagram::AddUMLElement

parameter

name

direction

type

type modifier

multiplicity

default

strKind

in

string







nLeft

in

int







nTop

in

int







return

return

IUMLGuiNodeLink







documentation

Adds a new UML element (e.g. IUMLClass, IUMLPackage,...) to the model and shows it with a new IUMLGuiNodeLink on the diagram.



Operation IUMLGuiDiagram::AddUMLGuiContainmentLink

parameter

name

direction

type

type modifier

multiplicity

default

ipFromLink

in

IUMLGuiLink







ipToLink

in

IUMLGuiLink







return

return

IUMLGuiContainmentLink









Operation IUMLGuiDiagram::AddUMLGuiNodeLink

parameter

name

direction

type

type modifier

multiplicity

default

ipForUMLData

in

IUMLData







nLeft

in

int







nTop

in

int







return

return

IUMLGuiNodeLink







documentation

Adds a new IUMLGuiNodeLink for an existing UML element (e.g. IUMLClass, IUMLPackage,...) on the diagram.



Operation IUMLGuiDiagram::AddUMLGuiNote

parameter

name

direction

type

type modifier

multiplicity

default

nLeft

in

int







nTop

in

int







return

return

IUMLGuiNote









Operation IUMLGuiDiagram::AddUMLGuiNoteLink

parameter

name

direction

type

type modifier

multiplicity

default

ipFromNote

in

IUMLGuiNote







ipToLink

in

IUMLGuiNodeLink







return

return

IUMLGuiNoteLink









Operation IUMLGuiDiagram::AddUMLGuiNoteLinkToLine

parameter

name

direction

type

type modifier

multiplicity

default

ipFromNote

in

IUMLGuiNote







ipToLink

in

IUMLGuiLineLink







nDistanceFromLineBegin

in

int







return

return

IUMLGuiNoteLink









Operation IUMLGuiDiagram::AddUMLLineElement

parameter

name

direction

type

type modifier

multiplicity

default

strKind

in

string







ipFromNode

in

IUMLGuiNodeLink







ipToNode

in

IUMLGuiNodeLink







return

return

IUMLGuiLineLink







documentation

Adds a new UML line element (e.g. IUMLGeneralization, IUMLAssociation,...) to the model and shows it with a new IUMLGuiLineLink on the diagram.



Operation IUMLGuiDiagram::Comment

parameter

name

direction

type

type modifier

multiplicity

default

return

return

string









Operation IUMLGuiDiagram::EraseFromDiagram

parameter

name

direction

type

type modifier

multiplicity

default

ipVal

in

IUMLGuiElement







return

return

void







documentation

Use this function to erase the element from the diagram only.

Use IUMLElement::EraseFromModel to erase from the model and all diagrams.



Operation IUMLGuiDiagram::EraseFromModel

parameter

name

direction

type

type modifier

multiplicity

default

return

return

void









Operation IUMLGuiDiagram::GuiLinks

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList







documentation

A list of elements of type IUMLGuiLink which are displayed directly on this diagram. Usually, these are IUMLGuiNodeLinks and IUMLGuiLineLinks.



Operation IUMLGuiDiagram::InsertLayerAt

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







return

return

IUMLGuiDiagramLayer









Operation IUMLGuiDiagram::InsertOwnedGuiTextHyperlinkAt

parameter

name

direction

type

type modifier

multiplicity

default

nFromTextPos

in

int







nToTextPos

in

int







strAddress

in

string







return

return

IUMLGuiTextHyperlink









Operation IUMLGuiDiagram::Layers

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList







documentation

A list of all layers in the diagam. The list contains elements of type IUMLGuiDiagramLayer.



Operation IUMLGuiDiagram::LinkedOwner

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLElement









Operation IUMLGuiDiagram::MergeLayersAt

parameter

name

direction

type

type modifier

multiplicity

default

nFromIdx

in

int







nToIdx

in

int







return

return

void









Operation IUMLGuiDiagram::Name

parameter

name

direction

type

type modifier

multiplicity

default

return

return

string









Operation IUMLGuiDiagram::OwnedHyperlinks

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList









Operation IUMLGuiDiagram::SetName

parameter

name

direction

type

type modifier

multiplicity

default

strStartWith

in

string







return

return

string









Operation IUMLGuiDiagram::ZoomFactor

parameter

name

direction

type

type modifier

multiplicity

default

return

return

int
