Interface IUMLGuiTimingDiagramLifeline

diagram

UModelAPI_diagrams/UModelAPI_p379.png

hierarchy

UModelAPI_diagrams/UModelAPI_p380.png

typedElements

documentation

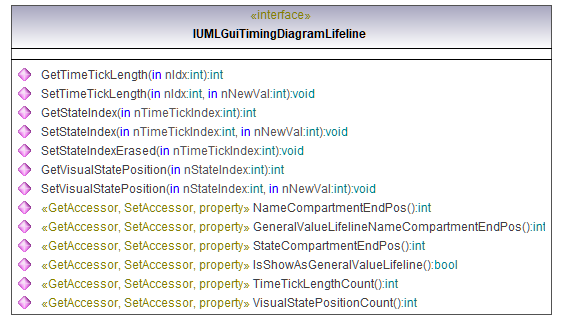

A IUMLGuiTimingDiagramLifeline is the graphical representation of a lifeline on a timing diagram. This type of lifeline has several options to display its data and provides access to these through its numerous properties.



Operation IUMLGuiTimingDiagramLifeline::GeneralValueLifelineNameCompartmentEndPos

parameter

name

direction

type

type modifier

multiplicity

default

return

return

int









Operation IUMLGuiTimingDiagramLifeline::GetStateIndex

parameter

name

direction

type

type modifier

multiplicity

default

nTimeTickIndex

in

int







return

return

int









Operation IUMLGuiTimingDiagramLifeline::GetTimeTickLength

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







return

return

int









Operation IUMLGuiTimingDiagramLifeline::GetVisualStatePosition

parameter

name

direction

type

type modifier

multiplicity

default

nStateIndex

in

int







return

return

int









Operation IUMLGuiTimingDiagramLifeline::IsShowAsGeneralValueLifeline

parameter

name

direction

type

type modifier

multiplicity

default

return

return

bool









Operation IUMLGuiTimingDiagramLifeline::NameCompartmentEndPos

parameter

name

direction

type

type modifier

multiplicity

default

return

return

int









Operation IUMLGuiTimingDiagramLifeline::SetStateIndex

parameter

name

direction

type

type modifier

multiplicity

default

nTimeTickIndex

in

int







nNewVal

in

int







return

return

void









Operation IUMLGuiTimingDiagramLifeline::SetStateIndexErased

parameter

name

direction

type

type modifier

multiplicity

default

nTimeTickIndex

in

int







return

return

void









Operation IUMLGuiTimingDiagramLifeline::SetTimeTickLength

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







nNewVal

in

int







return

return

void









Operation IUMLGuiTimingDiagramLifeline::SetVisualStatePosition

parameter

name

direction

type

type modifier

multiplicity

default

nStateIndex

in

int







nNewVal

in

int







return

return

void









Operation IUMLGuiTimingDiagramLifeline::StateCompartmentEndPos

parameter

name

direction

type

type modifier

multiplicity

default

return

return

int









Operation IUMLGuiTimingDiagramLifeline::TimeTickLengthCount

parameter

name

direction

type

type modifier

multiplicity

default

return

return

int









Operation IUMLGuiTimingDiagramLifeline::VisualStatePositionCount

parameter

name

direction

type

type modifier

multiplicity

default

return

return

int
