Altova FlowForce Server 2022 Advanced Edition

The /system/sftp container includes functions used to connect to the SSH server with SFTP support. The /system/sftp functions enable you to perform operations such as uploading and retrieving files, creating and removing directories, deleting files, and others. In terms of path conventions, the /system/sftp functions have the same characteristics as the /system/ftp functions. However, the /system/sftp functions use a different protocol and require that the connection to the server be established in a separate FlowForce step. Once you have established the SFTP connection, you can use it in further steps to do the required operations (see screenshot below).

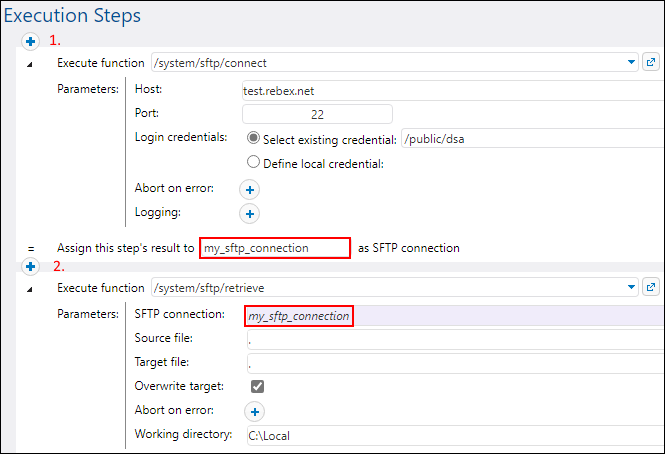

fs-sftp-example

In the example job illustrated above, two steps are defined:



The first step establishes the SFTP connection and declares this object as my_sftp_connection.

The second step retrieves all the files from the current directory of the SFTP server and outputs them to the local working directory C:\Local. The first parameter points to the my_sftp_connection object declared in the first execution step.



Some parameters can be set to <Expression> (e.g., Login credentials). To find out more about expressions, see FlowForce Expressions.



Wildcards in SFTP functions

The following functions accept wildcards as parameters:



/system/sftp/delete-wildcard

/system/sftp/retrieve-wildcard

/system/sftp/store-wildcard



When using such functions, you can enter the following wildcards:



Wildcard

Usage

Example

*

Match zero or more characters.

*.htm will match home.htm and index.htm

?

Match any single character.

*.xm? will match index.xml and project.xmi



The + (one or more) wildcard is not supported. Instead, you can use ?* to achieve the same effect. For example, *.c?* will match .cs , .cp and .csproj files but will not match .c files.
