Altova FlowForce Server 2024 Advanced Edition

Extracts the parent directory from a path.





Signature

parent-directory(path:string) -> string



Parameters

Name

Type

Description

path

string

Specifies the path to a directory.





Examples

Let's assume you have a MapForce mapping which updates a database from an XML file. You've deployed it to FlowForce Server already and created a job from it. Also, you've configured the job run when the content of the directory changes (that is, your job uses a file system trigger, see File System Triggers).



The first step of the job runs the mapping which updates the database:

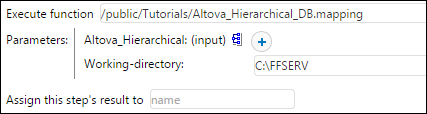

func-example-parent-directory01

After the mapping step finishes executing, your goal is to move the source XML file into the subdirectory called "processed". This would help you keep a track of which files have been processed. To achieve this goal, add a new step which calls the /system/filesystem/move function and enter as Source and Destination the values shown below:

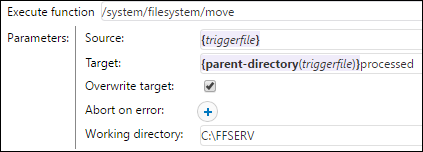

func-example-parent-directory02

The parameter value {triggerile} in the Source field instructs FlowForce to move specifically the file which triggered the mapping. The parameter value



{parent-directory(triggerfile)}processed



in the Destination field sets as destination a directory called "processed", inside the current directory. It consists of an expression and of a string. Note that only the expression part is delimited by curly braces (see Embedding Expressions in String Fields). The expression



{parent-directory(triggerfile)}



calls the parent-directory function and supplies to it the value "triggerfile" as argument.



Therefore, when the job runs, the following actions take place:



1. A script or a user copies a file (let's call it source.xml) into the current working directory (for example, C:\FFSERV).

2. The trigger fires and source.xml becomes the "triggerfile".

3. FlowForce Server executes the step which runs the mapping.

4. FlowForce Server executes the step which moves source.xml to the "processed" subdirectory. Note that the path C:\FFSERV\processed must exist.
