Altova DiffDog 2020 Enterprise Edition

The Edit Filter dialog provides several options to restrict the directory comparison:



Consider only files of a certain type

Consider only specific directories

Ignore certain files or directories

Compare files or directories with certain attributes

Define a date range for files/directories to be compared

Restrict files to a certain file size

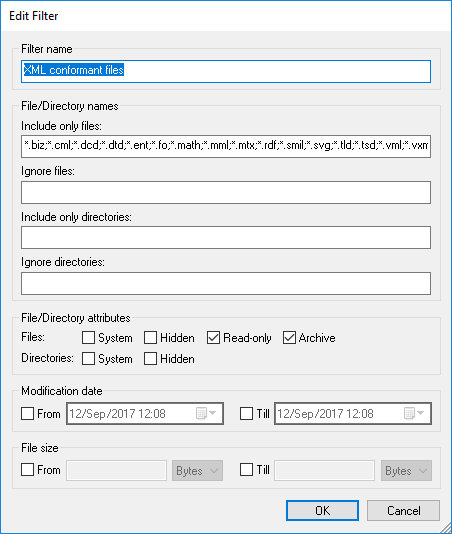

dd_dlg_edit_filter

Note that if a file type is included in both the Include only files and Ignore files field, then that file type is ignored in a directory comparison.



For Directory Comparison windows that were opened before a new filter is selected, you must reload both directories so that the new filters are applied to these comparison windows.



Modification date

In the Modification date group box, you can enter a From and/or a Till date to define a date range for directory comparison. Only files within that particular date range will be considered when the directories are compared. To include all files from or until a particular date, select only the corresponding check box (From or Till, respectively) and leave the second check box unchecked. After you select the From or Till check box, you can either type or select the part of the date that you want to change.





To define a filter for directory comparison:

1.Select the menu option Tools | DiffDog Options and change to the Directory Comparison tab, or click the Edit Filter ic_edit-filter button in the toolbar of a File Comparison window to open the DiffDog Options dialog.

2.Click the ic_new-filter button to open the Edit Filter dialog.

3.In the Edit Filter dialog, enter a descriptive name in the Filter name field.

By default, "*.*" is displayed in the Include only files fields and ''*" is displayed in the Include only directories fields. If you don't change this settings, files of all  types and in all directories will be compared.

4.To restrict the comparison to certain file types, enter the file extension in the Include only files field. To exclude file types from comparison, enter the file extension in the Ignore files field. Note that file types are listed in the form *.ext, and that the delimiter between file types in a filter is the semi-colon (;).

5.To include or ignore specific sub-folders of a directory during comparison, enter the name of the folder(s) in the Include only directories field or the Ignore directories field, respectively. You can also use the wildcard character * to enter only parts of folder names. Note that the delimiter between individual folder names in a filter is the semi-colon (;).

6.To include files or directories that have certain attributes applied, activate the respective check box(es) in the File/Directory attributes group box. Files or directories with unchecked attributes will not be shown in the Directory Comparison window. Note that hidden files in hidden directories will not be shown if the Hidden check box is activated for files but deactivated for directories.

7.Activate the From and/or Till check boxes in the Modification date group box, if you want to restrict the comparison to a certain date range.

8.Activate the From and/or Till check boxes in the File size group box, if you want to restrict the comparison to files of a certain size. Enter a number and select the appropriate unit from the drop-down list.

9.Click OK to save the changes.
