Altova SchemaAgent 2020

The Design window is where you view and edit the files for which you have defined the relevant file extensions. Currently, the following files are supported in SchemaAgent:


W3C XML Schema

MapForce Design files

XML instance files

XSL/XSLT stylesheets

Web Service Description Language (WSDL) files

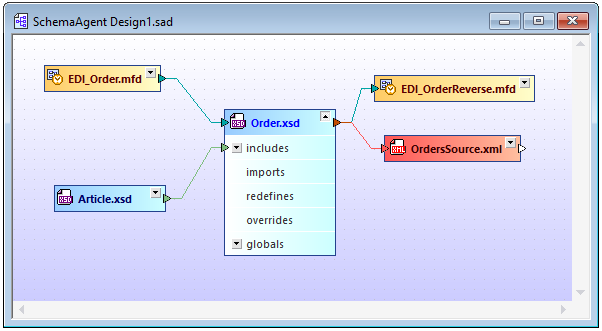

You can drag files from the Explorer window and drop it onto the Design window to get a graphical illustration of the files and their existing Includes, Imports, and Redefines (IIRs). The files can be aligned and sorted according to your needs, or removed from the design again. It is possible to recreate a deleted file and to correct reference paths to files that are not existing on the specified location.


Includes, Imports, and Redefines between schemas or schemas and MFD files, respectively, are illustrated with customizable colored lines. IIRs can be edited and added using drag-and-drop and you can save each design as SAD file for late re-use. You can open several designs in the Design window, each of them is displayed in a separate Design tab.
