Relationships that exist between XML schemas or XSLT stylesheets and their corresponding XML instances are also displayed in SchemaAgent.

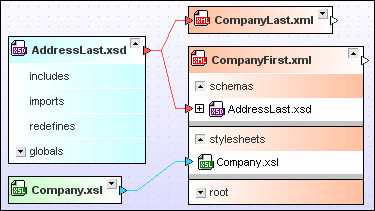

design_relation-XSD-XML

The connector lines lead from the title bar of an XML schema box to the title bar of an XML instance box when the XML box is collapsed, or to the schemas section within an XML box when the XML box is expanded. The default color for schema relations is red.



Relationships between XSLT stylesheets and  XML instances lead from the title bar of a stylesheet box to the title bar of an XML instance box when the XML box is collapsed, or to the stylesheets section within an XML box when the XML box is expanded. The default color for stylesheet relations is cyan.
