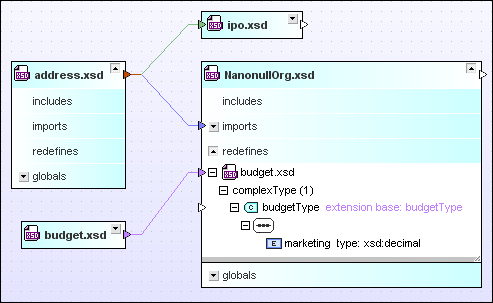

Lines to show relationships between schemas are solid by default and lead from the title bar of a schema box to the title bar of another schema box when the schema box is collapsed, or to an Include, Import, or Redefine section within a schema box when the schema box is expanded. Different colors are used to distinguish Imports, Includes, and Redefines; the default settings show Imports in light blue, Includes in green, Redefines in purple-violet.


Note that the connector points directly to the referenced component if you also expand the section within the schema box.
