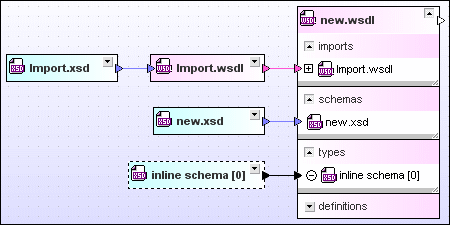

WSDL files can import other WSDL files or XML schemas. In addition, one or several inline schemas may be present in a WSDL file. SchemaAgent illustrates these relationships with different colors.

design_relations-WSDL

The default color for imports is magenta; for schema relations, it is light blue.



Inline schemas are displayed when you expand the "types" section in a WSDL box. You can also show a file box for the inline schema. The file box for the inline schema has a dashed border; apart from that, you can proceed as with any other XML schema box.

To display an inline schema:

1.Expand a WSDL box until the inline schemas are listed under "types".

2.Do one of the following:



oRight-click an inline schema and select the Show inline option from the context menu.

oClick the ic_show-inline-box icon to the left of the inline schema entry.

oDouble-click the inline schema entry.

To hide an inline schema:

Do one of the following:



oRight-click an inline schema and clear the Show inline option from the context menu.

oClick the ic_show-inline icon to the left of the inline schema entry.

oDouble-click the inline schema entry.
