In order to be able to work with a file in SchemaAgent Client, it must be contained in one of the search paths that are displayed in the Hierarchical and Flat tabs of the Explorer window. You cannot open files from outside SchemaAgent Client or drag them into the Design window.
|Note:||The procedure described below applies to the Configure Paths tab in both the Explorer window in SchemaAgent Client and the Environment window in SchemaAgent Server. The type of your SchemaAgent installation and the server you are connected to, respectively, determines in which window the Configure Paths tab is displayed.|
In SchemaAgent, you can define to display search paths relative to location the configuration file. This allows you to have shorter search path, if you folder structure is very extensive. Please note, that with SchemaAgent LocalServer each user has a separate configuration file in \Documents\Altova\SchemaAgent LocalServer2020.
To add or edit a search path:
1.In the Configure Paths tab of your respective SchemaAgent application, do one of the following:
•To add a search path, right-click the Search paths folder and select Add search path from the context menu, or click the folder and press the Insert key.
•To edit a search path, right-click one of the existing search paths and select Edit search path from the context menu.

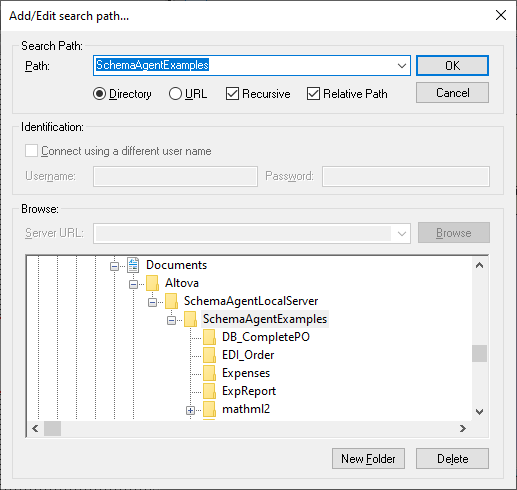

The Add/Edit search path dialog box opens.
2.In the Search Path group box, choose whether the search path is a directory or a URL.
If the search path is a directory, do the following:
1.Select the Directory radio button and enter the search path directly in the Path text box. Alternatively, browse for the required directory in the Browse pane; the selected directory is entered in the Path text box.
2.Select the Relative Path check box to make the search path entry in the Configure Paths pane relative; leave the check box unchecked to use an absolute path.
If the search path is a URL, do the following:
1.Enter the server URL in the Server URL text box of the Browse pane.
2.If authorization is required, in the Identification group box, select the Connect using a different user name check box and enter the username and password.
3.In the Browse group box, click the Browse button to browse for the required directory; the selected directory is entered in the Path text box in the Search Path group box.
3.Select the Recursive check box if you wish sub-directories of the selected directory to be searched. If this check box is not selected, no sub-directories will be searched.
To delete a search path:
1.In the Configure Paths tab of your respective SchemaAgent application, select the path you want to delete and do one of the following:
•Right-click and choose Delete search path from the context menu.
•Press the Delete key.
2.Click Yes in the message box that pops up.
