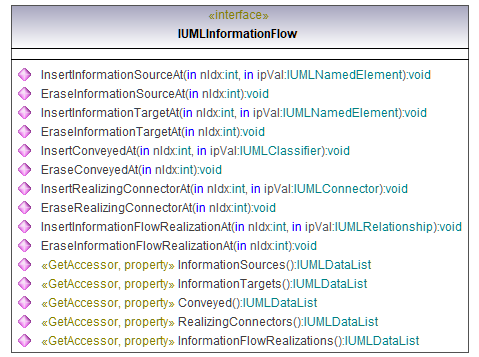

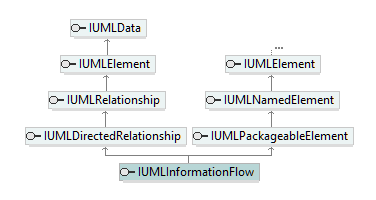

Interface IUMLInformationFlow
Operation IUMLInformationFlow::Conveyed
parameter | name | direction | type | type modifier | multiplicity | default | return | return | IUMLDataList | | | |
|
Operation IUMLInformationFlow::EraseConveyedAt
parameter | name | direction | type | type modifier | multiplicity | default | nIdx | in | int | | | | return | return | void | | | |
|
Operation IUMLInformationFlow::EraseInformationFlowRealizationAt
parameter | name | direction | type | type modifier | multiplicity | default | nIdx | in | int | | | | return | return | void | | | |
|
Operation IUMLInformationFlow::EraseInformationSourceAt
parameter | name | direction | type | type modifier | multiplicity | default | nIdx | in | int | | | | return | return | void | | | |
|
Operation IUMLInformationFlow::EraseInformationTargetAt
parameter | name | direction | type | type modifier | multiplicity | default | nIdx | in | int | | | | return | return | void | | | |
|
Operation IUMLInformationFlow::EraseRealizingConnectorAt
parameter | name | direction | type | type modifier | multiplicity | default | nIdx | in | int | | | | return | return | void | | | |
|
Operation IUMLInformationFlow::InformationFlowRealizations
parameter | name | direction | type | type modifier | multiplicity | default | return | return | IUMLDataList | | | |
|
Operation IUMLInformationFlow::InformationSources
parameter | name | direction | type | type modifier | multiplicity | default | return | return | IUMLDataList | | | |
|
Operation IUMLInformationFlow::InformationTargets
parameter | name | direction | type | type modifier | multiplicity | default | return | return | IUMLDataList | | | |
|
Operation IUMLInformationFlow::InsertConveyedAt
parameter | name | direction | type | type modifier | multiplicity | default | nIdx | in | int | | | | ipVal | in | IUMLClassifier | | | | return | return | void | | | |
|
Operation IUMLInformationFlow::InsertInformationFlowRealizationAt
parameter | name | direction | type | type modifier | multiplicity | default | nIdx | in | int | | | | ipVal | in | IUMLRelationship | | | | return | return | void | | | |
|
Operation IUMLInformationFlow::InsertInformationSourceAt
parameter | name | direction | type | type modifier | multiplicity | default | nIdx | in | int | | | | ipVal | in | IUMLNamedElement | | | | return | return | void | | | |
|
Operation IUMLInformationFlow::InsertInformationTargetAt
parameter | name | direction | type | type modifier | multiplicity | default | nIdx | in | int | | | | ipVal | in | IUMLNamedElement | | | | return | return | void | | | |
|
Operation IUMLInformationFlow::InsertRealizingConnectorAt
parameter | name | direction | type | type modifier | multiplicity | default | nIdx | in | int | | | | ipVal | in | IUMLConnector | | | | return | return | void | | | |
|
Operation IUMLInformationFlow::RealizingConnectors
parameter | name | direction | type | type modifier | multiplicity | default | return | return | IUMLDataList | | | |
|
