Interface IUMLGuiSeparatedNodeLink

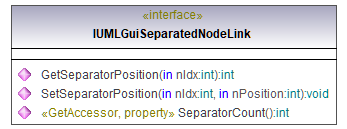

diagram

UModelAPI_diagrams/UModelAPI_p337.png

hierarchy

UModelAPI_diagrams/UModelAPI_p338.png

documentation

This node link represents a graphical object on a UModel diagram which can be separated into two or more parts by one or more either horizontal or vertical lines.

For each line, the position of the separator is stored in this node.

This node type is used for example by CombinedFragments, ActivityPartitions and States with regions.



Operation IUMLGuiSeparatedNodeLink::GetSeparatorPosition

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







return

return

int









Operation IUMLGuiSeparatedNodeLink::SeparatorCount

parameter

name

direction

type

type modifier

multiplicity

default

return

return

int









Operation IUMLGuiSeparatedNodeLink::SetSeparatorPosition

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







nPosition

in

int







return

return

void
