Altova MapForce 2023 Enterprise Edition

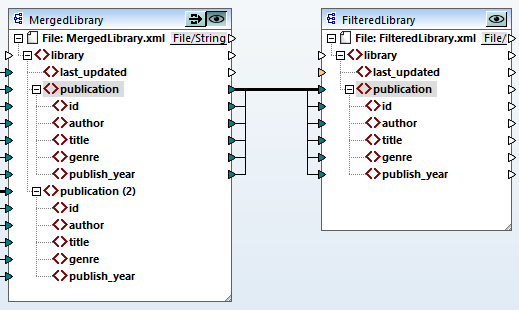

The next step is to map the <publication> element in MergedLibrary to the <publication> element in FilteredLibrary. When you connect the output connector of MergedLibrary with the input connector of FilteredLibrary, MapForce will inform you that you have created multiple target components in the mapping project. To preview the output of a specific target component, click the Preview button in the title bar of that component and then click the XSLT or Output pane. Notice that new buttons are now available in the upper-right corner of both target components: btn_component_preview (Preview) and btn_component_pass-through (Pass-through). These buttons will be used and explained in the next steps.

MF_Tut3_MakeCon1
