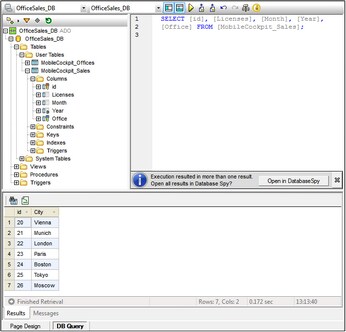

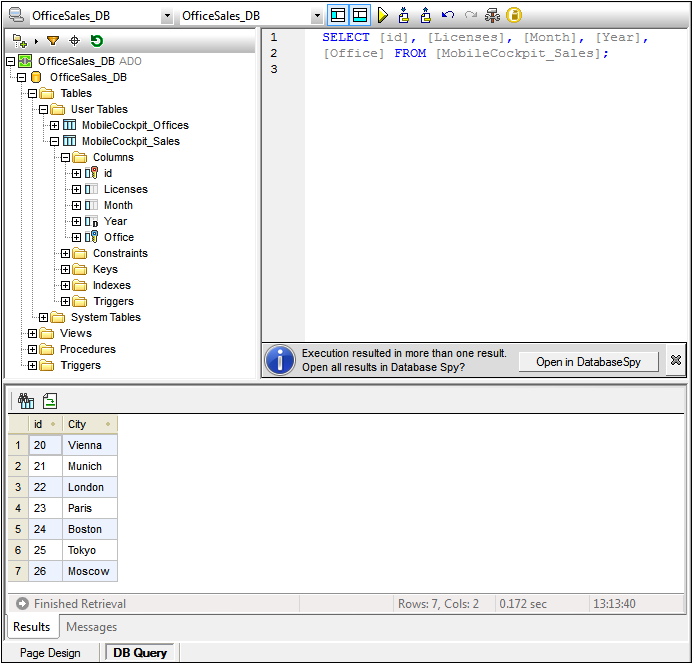

The DB Query View (screenshot below) is divided into the following parts:



The Browser window at left, which displays connection info and database tables

The SQL Editor window (Query window), to the right of the Browser window, contains your SQL queries

The Results tab of the Result/Messages windows displays the query results in tabular form

The Messages tab of the Result/Messages windows displays warnings or error messages



These windows are described in detail in the sub-sections of this section.

Click to expand/collapse



The DB Query View toolbar

The DB Query View toolbar (screenshot below) is located at the top of the view and provides icons for important commands related to the view.

MTDBQueryToolbar



Icon

Command

Does this

ic_quickconnect

Quick Connect

Starts the database connection wizard.

ic_DBQueryToggleBrowser

Toggle Browser

Toggles the Browser window on and off.

ic_DBQueryToggleResults

Toggle Results

Toggles the Results/Messages window on and off.

ic_dbqry_execute

Execute Query

Executes currently selected SQL statement. If script contains multiple statements and none is selected, then all are executed.

ic_DBQueryImportSQL

Import SQL File

Opens an SQL file in the SQL Editor.

ic_DBQueryExportSQL

Export SQL File

Saves SQL queries to an SQL file.

ic_undo

Undo

Undoes an unlimited number of edits in SQL Editor.

ic_redo

Redo

Redoes an unlimited number of edits in SQL Editor.

ic_DBQueryOptions

Options

Open the Options dialog of SQL Editor.

ic_DBQueryOpenInDBSpy

Open Query in DatabaseSpy

Opens the SQL script in Altova's DatabaseSpy application.
