The Help (F1) command opens the application's Help documentation (its user manual). By default, the Online Help in HTML format at the Altova website will be opened.
If you do not have Internet access or do not want, for some other reason, to access the Online Help, you can use the locally stored version of the user manual. The local version is a PDF file named DiffDog.pdf that is stored in the application folder (in the Program Files folder).
If you want to change the default format to open (Online Help or local PDF), do this in the Help section of the Options dialog (menu command Tools | Options).
License your product
After you download your Altova product software, you can license—or activate—it using either a free evaluation key or a purchased permanent license key.
•Free evaluation license. When you first start the software after downloading and installing it, the Software Activation dialog will pop up. In it is a button to request a free evaluation license. Enter your name, company, and e-mail address in the dialog and click Request. A license file is sent to the e-mail address you entered and should reach you in a few minutes. Save the license file to a suitable location.
When you clicked Request, an entry field appeared at the bottom of the Request dialog. This field takes the path to the license file. Browse for or enter the path to the license file and click OK. (In the Software Activation dialog, you can also click Upload a New License to access a dialog in which the path to the license file is entered.) The software will be unlocked for a period of 30 days.
•Permanent license key. The Software Activation dialog allows you to purchase a permanent license key. Clicking this button takes you to Altova's online shop, where you can purchase a permanent license key for your product. Your license will be sent to you by e-mail in the form of a license file, which contains your license-data.
There are three types of permanent license: installed, concurrent user, and named user. An installed license unlocks the software on a single computer. If you buy an installed license for N computers, then the license allows use of the software on up to N computers. A concurrent-user license for N concurrent users allows N users to run the software concurrently. (The software may be installed on 10N computers.) A named-user license authorizes a specific user to use the software on up to 5 different computers. To activate your software, click Upload a New License, and, in the dialog that appears, enter the path to the license file, and click OK.
You can access the Software Activation dialog (screenshot below) at any time by clicking the Help | Software Activation command.
Activate your software
You can activate the software by registering the license in the Software Activation dialog or by licensing via Altova LicenseServer (see details below).
•Registering the license in the Software Activation dialog. In the dialog, click Upload a New License and browse for the license file. Click OK to confirm the path to the license file and to confirm any data you entered (your name in the case of multi-user licenses). Finish by clicking Save.

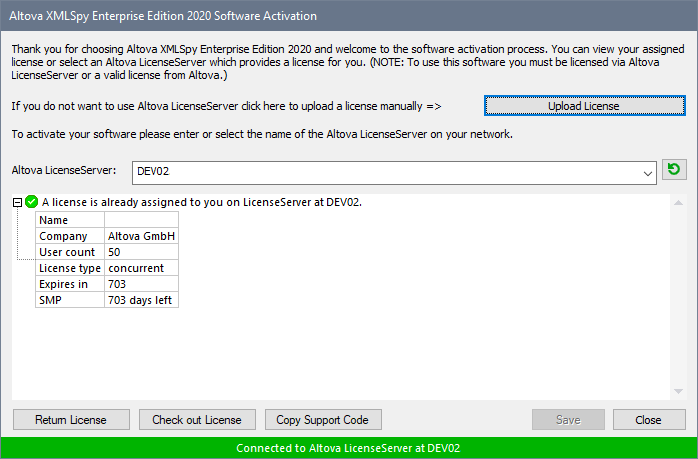

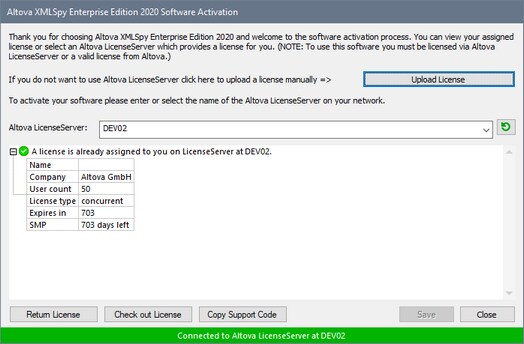

•Licensing via Altova LicenseServer on your network: To acquire a license via an Altova LicenseServer on your network, click Use Altova LicenseServer, located at the bottom of the Software Activation dialog. Select the machine on which the LicenseServer you want to use has been installed. Note that the auto-discovery of License Servers works by means of a broadcast sent out on the LAN. As these broadcasts are limited to a subnet, License Server must be on the same subnet as the client machine for auto-discovery to work. If auto-discovery does not work, then type in the name of the server. The Altova LicenseServer must have a license for your Altova product in its license pool. If a license is available in the LicenseServer pool, this is indicated in the Software Activation dialog (see screenshot below showing the dialog in Altova XMLSpy). Click Save to acquire the license.
After a machine-specific (aka installed) license has been acquired from LicenseServer, it cannot be returned to LicenseServer for a period of seven days. After that time, you can return the machine license to LicenseServer (click Return License) so that this license can be acquired from LicenseServer by another client. (A LicenseServer administrator, however, can unassign an acquired license at any time via the administrator's Web UI of LicenseServer.) Note that the returning of licenses applies only to machine-specific licenses, not to concurrent licenses.
Check out license
You can check out a license from the license pool for a period of up to 30 days so that the license is stored on the product machine. This enables you to work offline, which is useful, for example, if you wish to work in an environment where there is no access to your Altova LicenseServer (such as when your Altova product is installed on a laptop and you are traveling). While the license is checked out, LicenseServer displays the license as being in use, and the license cannot be used by any other machine. The license automatically reverts to the checked-in state when the check-out period ends. Alternatively, a checked-out license can be checked in at any time via the Check in button of the Software Activation dialog.
To check out a license, do the following: (i) In the Software Activation dialog, click Check out License (see screenshot above); (ii) In the License Check-out dialog that appears, select the check-out period you want and click Check out. The license will be checked out. After checking out a license, two things happen: (i) The Software Activation dialog will display the check-out information, including the time when the check-out period ends; (ii) The Check out License button in the dialog changes to a Check In button. You can check the license in again at any time by clicking Check In. Because the license automatically reverts to the checked-in status after the check-out period elapses, make sure that the check-out period you select adequately covers the period during which you will be working offline.
If the license being checked out is a Installed User license or Concurrent User license, then the license is checked out to the machine and is available to the user who checked out the license. If the license being checked out is a Named User license, then the license is checked out to the Windows account of the named user. License check-out will work for virtual machines, but not for virtual desktop (in a VDI). Note that, when a Named User license is checked out, the data to identify that license check-out is stored in the user's profile. For license check-out to work, the user's profile must be stored on the local machine that will be used for offline work. If the user's profile is stored at a non-local location (such as a file-share), then the checkout will be reported as invalid when the user tries to start the Altova application.
License check-ins must be to the same major version of the Altova product from which the license was checked out. So make sure to check in a license before you upgrade your Altova product to the next major version.
Note: For license check-outs to be possible, the check-out functionality must be enabled on LicenseServer. If this functionality has not been enabled, you will get an error message to this effect when you try to check out. In this event, contact your LicenseServer administrator.
Copy Support Code
Click Copy Support Code to copy license details to the clipboard. This is the data that you will need to provide when requesting support via the online support form.
Altova LicenseServer provides IT administrators with a real-time overview of all Altova licenses on a network, together with the details of each license as well as client assignments and client usage of licenses. The advantage of using LicenseServer therefore lies in administrative features it offers for large-volume Altova license management. Altova LicenseServer is available free of cost from the Altova website. For more information about Altova LicenseServer and licensing via Altova LicenseServer, see the Altova LicenseServer documentation.
When you are ready to order a licensed version of the software product, you can use either the Purchase a Permanent License Key button in the Software Activation dialog (see previous section) or the Order Form command to proceed to the secure Altova Online Shop.
Opens the Altova Product Registration page in a tab of your browser. Registering your Altova software will help ensure that you are always kept up to date with the latest product information.
Checks with the Altova server whether a newer version than yours is currently available and displays a message accordingly.
Clicking the Product Comparison command redirects you to the Altova website, where you can get an overview of features supported in the Professional and Enterprise editions.
A link to the Altova Support Center on the Internet. The Support Center provides FAQs, discussion forums where problems are discussed, and access to Altova's technical support staff.
A link to Altova's Component Download Center on the Internet. From here you can download a variety of companion software to use with Altova products. Such software ranges from XSLT and XSL-FO processors to Application Server Platforms. The software available at the Component Download Center is typically free of charge.
Displays the splash window and version number of your product. If you are using the 64-bit version of DiffDog, this is indicated with the suffix (x64) after the application name. There is no suffix for the 32-bit version.
