Altova DiffDog 2024 Professional Edition

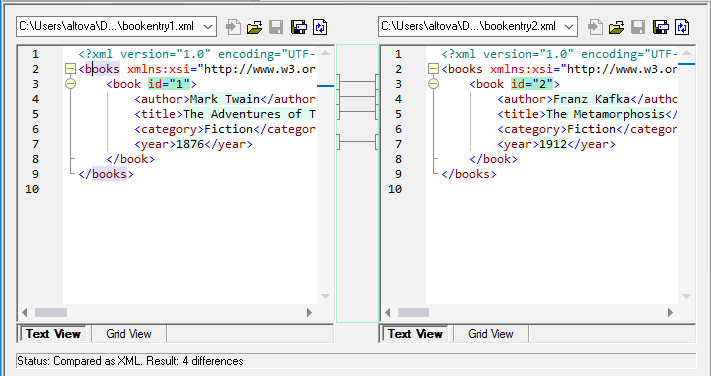

Text View is the standard display mode for any file pair being compared in DiffDog. Notice that the corresponding differences in the two documents are linked for easier identification and analysis. When synchronized scrolling is toggled on, both documents scroll so that corresponding differences are always in view simultaneously.


The current difference is highlighted in a different color than the other differences. In the screenshot above the current difference is displayed in a darker green. These colors can be changed in the DiffDog Options. It is important to know which difference is the current difference because merging is always done for the current difference only. You can navigate among the differences with the navigation commands that are available in the Diff and Merge menu and as toolbar icons.
