UModelAPI - IUMLVertex

Interface IUMLVertex

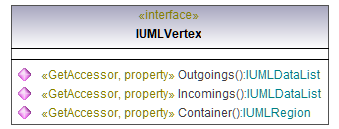

diagram

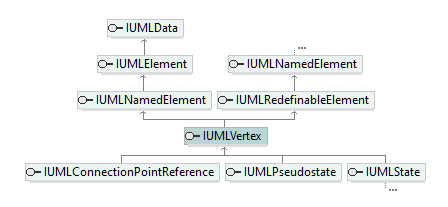

hierarchy

typedElements

Interface IUMLDataAll	Operation	InsertSubVertexAt InsertTransitionAt TransitionSource TransitionTarget
Interface IUMLRegion	Operation	InsertSubVertexAt InsertTransitionAt
Interface IUMLTransition	Operation	TransitionSource TransitionTarget

Operation IUMLVertex::Container

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLRegion

Operation IUMLVertex::Incomings

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLTransition.

Operation IUMLVertex::Outgoings

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLTransition.
