Altova UModel 2024 Professional Edition

UModelAPI - IUMLInteraction

Interface IUMLInteraction

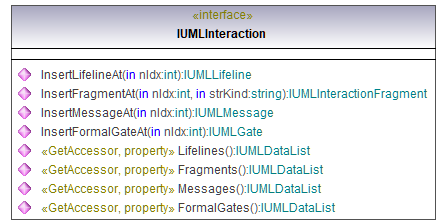

diagram

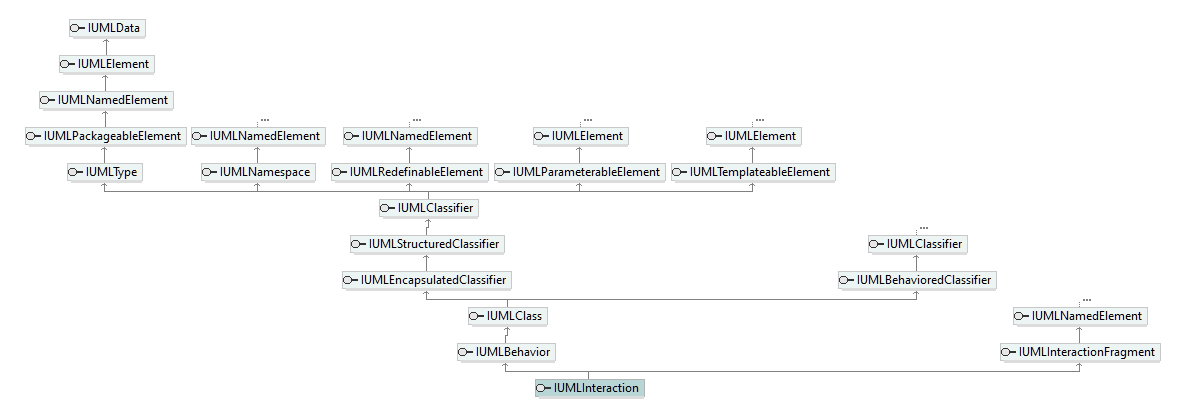

hierarchy

typedElements

Interface IUMLDataAll	Operation	RefersTo
Interface IUMLInteractionUse	Operation	RefersTo

Operation IUMLInteraction::FormalGates

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLGate.

Operation IUMLInteraction::Fragments

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLInteractionFragment.

Operation IUMLInteraction::InsertFormalGateAt

parameter

Operation IUMLInteraction::InsertFragmentAt

parameter

Operation IUMLInteraction::InsertLifelineAt

parameter

Operation IUMLInteraction::InsertMessageAt

parameter

Operation IUMLInteraction::Lifelines

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLLifeline.

Operation IUMLInteraction::Messages

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLMessage.
