UModelAPI - IUMLGuiDiagramLayer

Home Prev Top Next

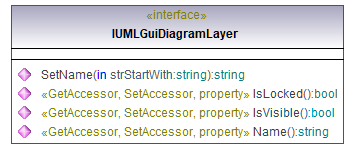

Interface IUMLGuiDiagramLayer

diagram

hierarchy

typedElements

Interface IUMLDataAll	Operation	ActiveLayer InsertLayerAt Layer
Interface IUMLGuiDiagram	Operation	ActiveLayer InsertLayerAt
Interface IUMLGuiLink	Operation	Layer

documentation

Represents a layer on an IUMLGuiDiagram. Makes it possible to group elements on a diagram into categories, to lock/unlock them and to make them visible or invisible.

Operation IUMLGuiDiagramLayer::IsLocked

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLGuiDiagramLayer::IsVisible

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLGuiDiagramLayer::Name

parameter

name	direction	type	type modifier	multiplicity	default
return	return	string

Operation IUMLGuiDiagramLayer::SetName

parameter

name	direction	type	type modifier	multiplicity	default
strStartWith	in	string
return	return	string
