UModelAPI - IUMLActivity

Interface IUMLActivity

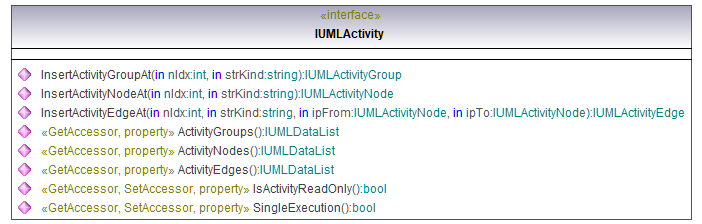

diagram

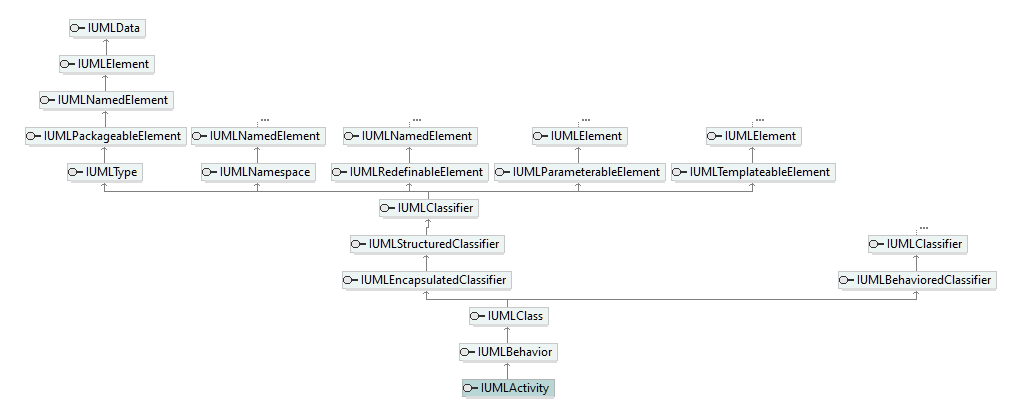

hierarchy

typedElements

Interface IUMLActivityEdge	Operation	Activity
Interface IUMLActivityGroup	Operation	InActivity
Interface IUMLDataAll	Operation	Activity InActivity

Operation IUMLActivity::ActivityEdges

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLActivityEdge.

Operation IUMLActivity::ActivityGroups

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLActivityGroup.

Operation IUMLActivity::ActivityNodes

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLActivityNode.

Operation IUMLActivity::InsertActivityEdgeAt

parameter

Operation IUMLActivity::InsertActivityGroupAt

parameter

Operation IUMLActivity::InsertActivityNodeAt

parameter

Operation IUMLActivity::IsActivityReadOnly

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLActivity::SingleExecution

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool
