UModelAPI - IUMLGuiConstrainedNode

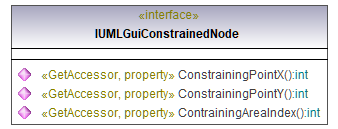

Interface IUMLGuiConstrainedNode

diagram
hierarchy
documentation	This node link is used to represent objects on diagrams which can be directly attached to a parent node link and placed relatively to and in special constraining areas of the parent. Used for example for Pins on Activtiy Diagrams.

Operation IUMLGuiConstrainedNode::ConstrainingPointX

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int

documentation

X coordinate relative to the uppor left position of the contraining area.

Operation IUMLGuiConstrainedNode::ConstrainingPointY

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int

documentation

Y coordinate relative to the uppor left position of the contraining area.

Operation IUMLGuiConstrainedNode::ContrainingAreaIndex

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int

documentation

Defines the index of the area where this node is currently in and to which its relative position has its origin.
