UModelAPI - IUMLNamespace

Home Prev Top Next

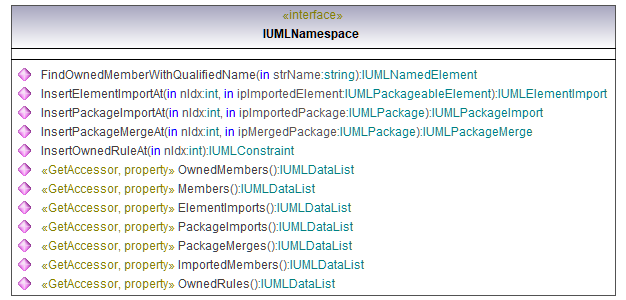

Interface IUMLNamespace

diagram

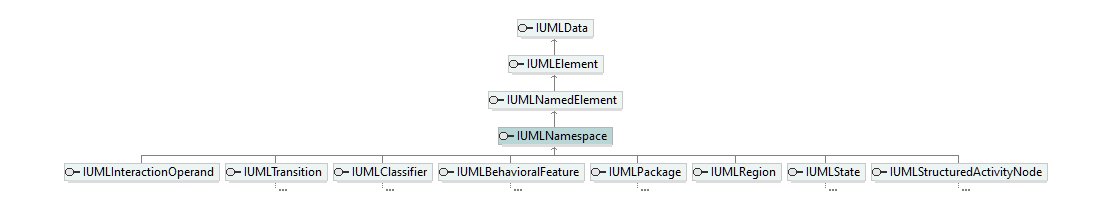

hierarchy

typedElements

Interface IUMLConstraint	Operation	Context
Interface IUMLDataAll	Operation	Context ImportingNamespace Namespace
Interface IUMLElementImport	Operation	ImportingNamespace
Interface IUMLNamedElement	Operation	Namespace
Interface IUMLPackageImport	Operation	ImportingNamespace

Operation IUMLNamespace::ElementImports

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLElementImport.

Operation IUMLNamespace::FindOwnedMemberWithQualifiedName

parameter

name	direction	type	type modifier	multiplicity	default
strName	in	string
return	return	IUMLNamedElement

Operation IUMLNamespace::ImportedMembers

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLPackageableElement.

Operation IUMLNamespace::InsertElementImportAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
ipImportedElement	in	IUMLPackageableElement
return	return	IUMLElementImport

Operation IUMLNamespace::InsertOwnedRuleAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	IUMLConstraint

Operation IUMLNamespace::InsertPackageImportAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
ipImportedPackage	in	IUMLPackage
return	return	IUMLPackageImport

Operation IUMLNamespace::InsertPackageMergeAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
ipMergedPackage	in	IUMLPackage
return	return	IUMLPackageMerge

Operation IUMLNamespace::Members

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLNamedElement.

Operation IUMLNamespace::OwnedMembers

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLNamedElement.

Operation IUMLNamespace::OwnedRules

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLConstraint.

Operation IUMLNamespace::PackageImports

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLPackageImport.

Operation IUMLNamespace::PackageMerges

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLPackageMerge.
