Altova UModel 2024 Professional Edition

UModelAPI - IUMLMultiplicityElement

Interface IUMLMultiplicityElement

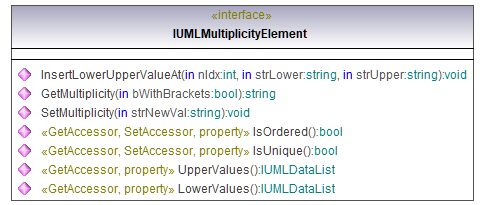

diagram

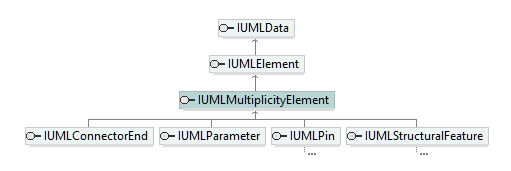

hierarchy

typedElements

Interface IUMLDataAll	Operation	OwningLower OwningUpper
Interface IUMLValueSpecification	Operation	OwningLower OwningUpper

Operation IUMLMultiplicityElement::GetMultiplicity

parameter

Operation IUMLMultiplicityElement::InsertLowerUpperValueAt

parameter

Operation IUMLMultiplicityElement::IsOrdered

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLMultiplicityElement::IsUnique

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLMultiplicityElement::LowerValues

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLValueSpecification.

Operation IUMLMultiplicityElement::SetMultiplicity

parameter

Operation IUMLMultiplicityElement::UpperValues

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLValueSpecification.

UML documentation generated by UModel UML Editor https://www.altova.com/umodel

Tue Oct 24 12:26:31 2023
