UModelAPI - IUMLGuiTextLabel

Home Prev Top Next

Interface IUMLGuiTextLabel

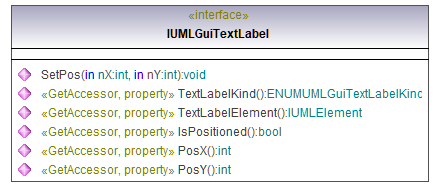

diagram

hierarchy

typedElements

Interface IUMLDataAll	Operation	GetTextLabelText IsTextLabelVisible SetTextLabelVisible
Interface IUMLGuiTextLabelWaypoint	Operation	GetTextLabelText IsTextLabelVisible SetTextLabelVisible

documentation

A text label is an graphical object displaying additional data at the begin, end or at the center of a line. The IUMLGuiTextLabel interface provides access to this element. The text label can reference an UML Element using the TextLabelElement property and has a TextLabelKind which affects what text is shown in the text label.

Operation IUMLGuiTextLabel::IsPositioned

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLGuiTextLabel::PosX

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int

Operation IUMLGuiTextLabel::PosY

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int

Operation IUMLGuiTextLabel::SetPos

parameter

name	direction	type	type modifier	multiplicity	default
nX	in	int
nY	in	int
return	return	void

Operation IUMLGuiTextLabel::TextLabelElement

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLElement

Operation IUMLGuiTextLabel::TextLabelKind

parameter

name	direction	type	type modifier	multiplicity	default
return	return	ENUMUMLGuiTextLabelKind
