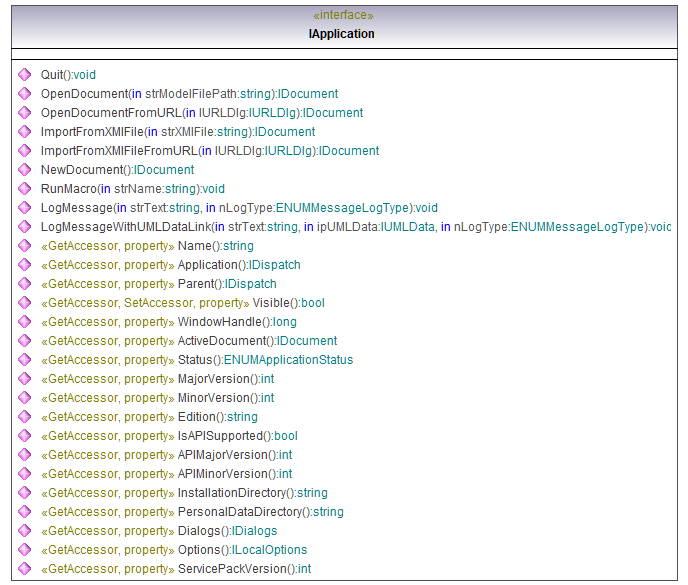

Interface IApplication
Operation IApplication::ActiveDocument
parameter | name | direction | type | type modifier | multiplicity | default | return | return | IDocument | | | |
|
Operation IApplication::APIMajorVersion
parameter | name | direction | type | type modifier | multiplicity | default | return | return | int | | | |
|
documentation | A change in the APIMajorVersion of the type library (e.g. 1.0 => 2.0) means that non-scripting clients (e.g. IDE PlugIns written in C#, VB.NET, C++,...) should be recompiled. |
Operation IApplication::APIMinorVersion
parameter | name | direction | type | type modifier | multiplicity | default | return | return | int | | | |
|
Operation IApplication::Application
parameter | name | direction | type | type modifier | multiplicity | default | return | return | IDispatch | | | |
|
Operation IApplication::Dialogs
parameter | name | direction | type | type modifier | multiplicity | default | return | return | IDialogs | | | |
|
Operation IApplication::Edition
parameter | name | direction | type | type modifier | multiplicity | default | return | return | string | | | |
|
Operation IApplication::ImportFromXMIFile
parameter | name | direction | type | type modifier | multiplicity | default | strXMIFile | in | string | | | | return | return | IDocument | | | |
|
Operation IApplication::ImportFromXMIFileFromURL
parameter | name | direction | type | type modifier | multiplicity | default | IURLDlg | in | IURLDlg | | | | return | return | IDocument | | | |
|
Operation IApplication::InstallationDirectory
parameter | name | direction | type | type modifier | multiplicity | default | return | return | string | | | |
|
Operation IApplication::IsAPISupported
parameter | name | direction | type | type modifier | multiplicity | default | return | return | bool | | | |
|
Operation IApplication::LogMessage
parameter | name | direction | type | type modifier | multiplicity | default | strText | in | string | | | | nLogType | in | ENUMMessageLogType | | | | return | return | void | | | |
|
Operation IApplication::LogMessageWithUMLDataLink
parameter | name | direction | type | type modifier | multiplicity | default | strText | in | string | | | | ipUMLData | in | IUMLData | | | | nLogType | in | ENUMMessageLogType | | | | return | return | void | | | |
|
Operation IApplication::MajorVersion
parameter | name | direction | type | type modifier | multiplicity | default | return | return | int | | | |
|
Operation IApplication::MinorVersion
parameter | name | direction | type | type modifier | multiplicity | default | return | return | int | | | |
|
Operation IApplication::Name
parameter | name | direction | type | type modifier | multiplicity | default | return | return | string | | | |
|
Operation IApplication::NewDocument
parameter | name | direction | type | type modifier | multiplicity | default | return | return | IDocument | | | |
|
Operation IApplication::OpenDocument
parameter | name | direction | type | type modifier | multiplicity | default | strModelFilePath | in | string | | | | return | return | IDocument | | | |
|
Operation IApplication::OpenDocumentFromURL
parameter | name | direction | type | type modifier | multiplicity | default | IURLDlg | in | IURLDlg | | | | return | return | IDocument | | | |
|
Operation IApplication::Options
parameter | name | direction | type | type modifier | multiplicity | default | return | return | ILocalOptions | | | |
|
Operation IApplication::Parent
parameter | name | direction | type | type modifier | multiplicity | default | return | return | IDispatch | | | |
|
Operation IApplication::PersonalDataDirectory
parameter | name | direction | type | type modifier | multiplicity | default | return | return | string | | | |
|
Operation IApplication::Quit
parameter | name | direction | type | type modifier | multiplicity | default | return | return | void | | | |
|
Operation IApplication::RunMacro
parameter | name | direction | type | type modifier | multiplicity | default | strName | in | string | | | | return | return | void | | | |
|
Operation IApplication::ServicePackVersion
parameter | name | direction | type | type modifier | multiplicity | default | return | return | int | | | |
|
Operation IApplication::Status
Operation IApplication::Visible
parameter | name | direction | type | type modifier | multiplicity | default | return | return | bool | | | |
|
Operation IApplication::WindowHandle
parameter | name | direction | type | type modifier | multiplicity | default | return | return | long | | | |
|
