Altova UModel 2024 Professional Edition

Navigation: UModel Programmer's Reference > UModel API Reference > UModel API Interfaces

UModelAPI - IGenerateDocumentationDlg

Home Prev Top Next

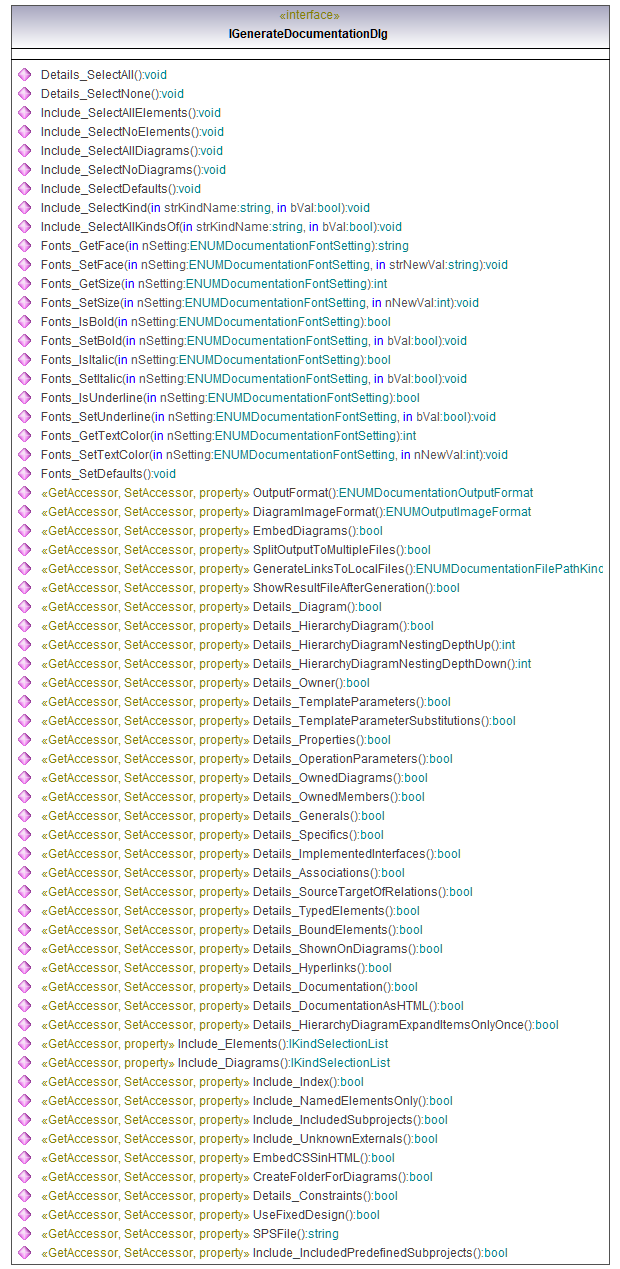

Interface IGenerateDocumentationDlg

diagram

hierarchy

typedElements

Interface IDialogs	Operation	GenerateDocumentationDlg
Interface IDocument	Operation	GenerateDocumentation

Operation IGenerateDocumentationDlg::CreateFolderForDiagrams

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::Details_Associations

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::Details_BoundElements

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::Details_Constraints

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::Details_Diagram

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::Details_Documentation

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::Details_DocumentationAsHTML

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::Details_Generals

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::Details_HierarchyDiagram

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::Details_HierarchyDiagramExpandItemsOnlyOnce

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::Details_HierarchyDiagramNestingDepthDown

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int

Operation IGenerateDocumentationDlg::Details_HierarchyDiagramNestingDepthUp

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int

Operation IGenerateDocumentationDlg::Details_Hyperlinks

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::Details_ImplementedInterfaces

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::Details_OperationParameters

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::Details_OwnedDiagrams

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::Details_OwnedMembers

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::Details_Owner

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::Details_Properties

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::Details_SelectAll

parameter

name	direction	type	type modifier	multiplicity	default
return	return	void

Operation IGenerateDocumentationDlg::Details_SelectNone

parameter

name	direction	type	type modifier	multiplicity	default
return	return	void

Operation IGenerateDocumentationDlg::Details_ShownOnDiagrams

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::Details_SourceTargetOfRelations

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::Details_Specifics

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::Details_TemplateParameters

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::Details_TemplateParameterSubstitutions

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::Details_TypedElements

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::DiagramImageFormat

parameter

name	direction	type	type modifier	multiplicity	default
return	return	ENUMOutputImageFormat

Operation IGenerateDocumentationDlg::EmbedCSSinHTML

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::EmbedDiagrams

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::Fonts_GetFace

parameter

name	direction	type	type modifier	multiplicity	default
nSetting	in	ENUMDocumentationFontSetting
return	return	string

Operation IGenerateDocumentationDlg::Fonts_GetSize

parameter

name	direction	type	type modifier	multiplicity	default
nSetting	in	ENUMDocumentationFontSetting
return	return	int

Operation IGenerateDocumentationDlg::Fonts_GetTextColor

parameter

name	direction	type	type modifier	multiplicity	default
nSetting	in	ENUMDocumentationFontSetting
return	return	int

Operation IGenerateDocumentationDlg::Fonts_IsBold

parameter

name	direction	type	type modifier	multiplicity	default
nSetting	in	ENUMDocumentationFontSetting
return	return	bool

Operation IGenerateDocumentationDlg::Fonts_IsItalic

parameter

name	direction	type	type modifier	multiplicity	default
nSetting	in	ENUMDocumentationFontSetting
return	return	bool

Operation IGenerateDocumentationDlg::Fonts_IsUnderline

parameter

name	direction	type	type modifier	multiplicity	default
nSetting	in	ENUMDocumentationFontSetting
return	return	bool

Operation IGenerateDocumentationDlg::Fonts_SetBold

parameter

name	direction	type	type modifier	multiplicity	default
nSetting	in	ENUMDocumentationFontSetting
bVal	in	bool
return	return	void

Operation IGenerateDocumentationDlg::Fonts_SetDefaults

parameter

name	direction	type	type modifier	multiplicity	default
return	return	void

Operation IGenerateDocumentationDlg::Fonts_SetFace

parameter

name	direction	type	type modifier	multiplicity	default
nSetting	in	ENUMDocumentationFontSetting
strNewVal	in	string
return	return	void

Operation IGenerateDocumentationDlg::Fonts_SetItalic

parameter

name	direction	type	type modifier	multiplicity	default
nSetting	in	ENUMDocumentationFontSetting
bVal	in	bool
return	return	void

Operation IGenerateDocumentationDlg::Fonts_SetSize

parameter

name	direction	type	type modifier	multiplicity	default
nSetting	in	ENUMDocumentationFontSetting
nNewVal	in	int
return	return	void

Operation IGenerateDocumentationDlg::Fonts_SetTextColor

parameter

name	direction	type	type modifier	multiplicity	default
nSetting	in	ENUMDocumentationFontSetting
nNewVal	in	int
return	return	void

Operation IGenerateDocumentationDlg::Fonts_SetUnderline

parameter

name	direction	type	type modifier	multiplicity	default
nSetting	in	ENUMDocumentationFontSetting
bVal	in	bool
return	return	void

Operation IGenerateDocumentationDlg::GenerateLinksToLocalFiles

parameter

name	direction	type	type modifier	multiplicity	default
return	return	ENUMDocumentationFilePathKind

Operation IGenerateDocumentationDlg::Include_Diagrams

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IKindSelectionList

Operation IGenerateDocumentationDlg::Include_Elements

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IKindSelectionList

Operation IGenerateDocumentationDlg::Include_IncludedPredefinedSubprojects

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::Include_IncludedSubprojects

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::Include_Index

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::Include_NamedElementsOnly

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::Include_SelectAllDiagrams

parameter

name	direction	type	type modifier	multiplicity	default
return	return	void

Operation IGenerateDocumentationDlg::Include_SelectAllElements

parameter

name	direction	type	type modifier	multiplicity	default
return	return	void

Operation IGenerateDocumentationDlg::Include_SelectAllKindsOf

parameter

name	direction	type	type modifier	multiplicity	default
strKindName	in	string
bVal	in	bool
return	return	void

Operation IGenerateDocumentationDlg::Include_SelectDefaults

parameter

name	direction	type	type modifier	multiplicity	default
return	return	void

Operation IGenerateDocumentationDlg::Include_SelectKind

parameter

name	direction	type	type modifier	multiplicity	default
strKindName	in	string
bVal	in	bool
return	return	void

Operation IGenerateDocumentationDlg::Include_SelectNoDiagrams

parameter

name	direction	type	type modifier	multiplicity	default
return	return	void

Operation IGenerateDocumentationDlg::Include_SelectNoElements

parameter

name	direction	type	type modifier	multiplicity	default
return	return	void

Operation IGenerateDocumentationDlg::Include_UnknownExternals

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::OutputFormat

parameter

name	direction	type	type modifier	multiplicity	default
return	return	ENUMDocumentationOutputFormat

Operation IGenerateDocumentationDlg::ShowResultFileAfterGeneration

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::SplitOutputToMultipleFiles

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IGenerateDocumentationDlg::SPSFile

parameter

name	direction	type	type modifier	multiplicity	default
return	return	string

Operation IGenerateDocumentationDlg::UseFixedDesign

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

UML documentation generated by UModel UML Editor https://www.altova.com/umodel

Tue Oct 24 12:26:31 2023
