UModelAPI - IUMLGuiLink

Home Prev Top Next

Interface IUMLGuiLink

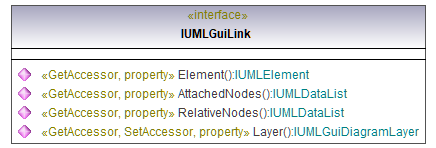

diagram

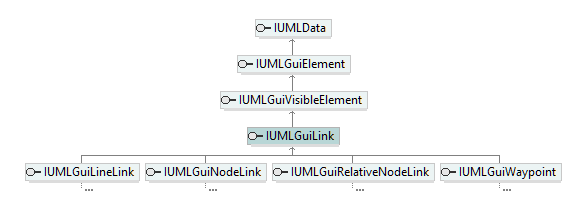

hierarchy

typedElements

Interface IDiagramWindow	Operation	FocusedGuiElement ScrollToGuiElement SelectGuiElement
Interface IUMLDataAll	Operation	AddUMLGuiContainmentLink AttachedTo
Interface IUMLGuiAttachedNode	Operation	AttachedTo
Interface IUMLGuiCommunicationDiagram	Operation	AddUMLGuiCommunicationLink
Interface IUMLGuiDiagram	Operation	AddUMLGuiContainmentLink

documentation

A GuiLink represents a graphical object on a diagram which is connected to an element from the UML (like a Class, an Interface or a Lifeline). This connected object can be accessed using the Element property.

IUMLGuiLinks further can have attached nodes (IUMLGuiAttachedNode) which appear when necessary, like Tagged Values and are associated with a Layer on the diagram.

Operation IUMLGuiLink::AttachedNodes

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

Returns a derived list of all attached nodes of this element. All elements in this list are of type (or subtype) of IUMLGuiAttachedNode.

Operation IUMLGuiLink::Element

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLElement

Operation IUMLGuiLink::Layer

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLGuiDiagramLayer

Operation IUMLGuiLink::RelativeNodes

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

Returns a list of relative nodes to this gui link. The list contains only elements of type (or subtype of) IUMLGuiRelativeNodeLink.
