Altova UModel 2024 Professional Edition

Navigation: UModel Programmer's Reference > UModel API Reference > UMLData Interfaces > IUMLElement

UModelAPI - IUMLPackage

Home Prev Top Next

Interface IUMLPackage

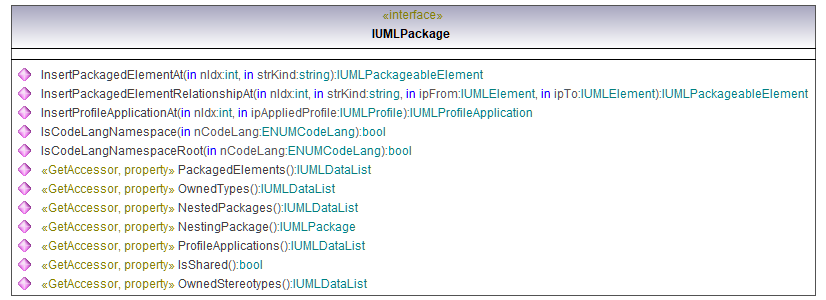

diagram

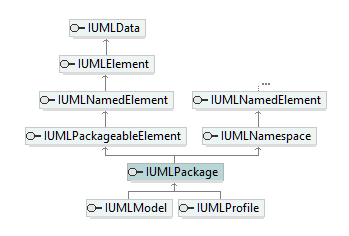

hierarchy

typedElements

Interface IDocument	Operation	RootPackage
Interface IImportSourceDlg	Operation	ImportTarget
Interface IModelTransformationDlg	Operation	SourcePackage TargetPackage
Interface IUMLDataAll	Operation	ApplyingPackage ImportedPackage InsertPackageImportAt InsertPackageMergeAt MergedPackage NestingPackage OwningPackage Package ReceivingPackage
Interface IUMLNamespace	Operation	InsertPackageImportAt InsertPackageMergeAt
Interface IUMLPackage	Operation	NestingPackage
Interface IUMLPackageableElement	Operation	OwningPackage
Interface IUMLPackageImport	Operation	ImportedPackage
Interface IUMLPackageMerge	Operation	MergedPackage ReceivingPackage
Interface IUMLProfileApplication	Operation	ApplyingPackage
Interface IUMLType	Operation	Package

Operation IUMLPackage::InsertPackagedElementAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
strKind	in	string
return	return	IUMLPackageableElement

Operation IUMLPackage::InsertPackagedElementRelationshipAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
strKind	in	string
ipFrom	in	IUMLElement
ipTo	in	IUMLElement
return	return	IUMLPackageableElement

Operation IUMLPackage::InsertProfileApplicationAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
ipAppliedProfile	in	IUMLProfile
return	return	IUMLProfileApplication

Operation IUMLPackage::IsCodeLangNamespace

parameter

name	direction	type	type modifier	multiplicity	default
nCodeLang	in	ENUMCodeLang
return	return	bool

Operation IUMLPackage::IsCodeLangNamespaceRoot

parameter

name	direction	type	type modifier	multiplicity	default
nCodeLang	in	ENUMCodeLang
return	return	bool

Operation IUMLPackage::IsShared

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLPackage::NestedPackages

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLPackage.

Operation IUMLPackage::NestingPackage

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLPackage

Operation IUMLPackage::OwnedStereotypes

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

Operation IUMLPackage::OwnedTypes

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLType.

Operation IUMLPackage::PackagedElements

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLPackageableElement.

Operation IUMLPackage::ProfileApplications

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLProfileApplication.

UML documentation generated by UModel UML Editor https://www.altova.com/umodel

Tue Oct 24 12:26:31 2023
