Interface IUMLClass

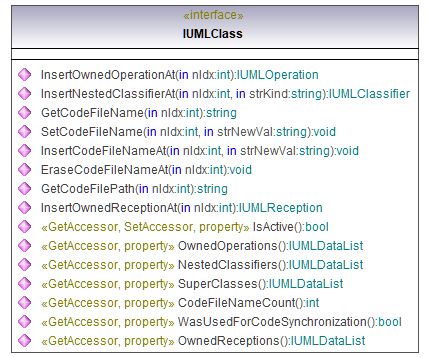

diagram

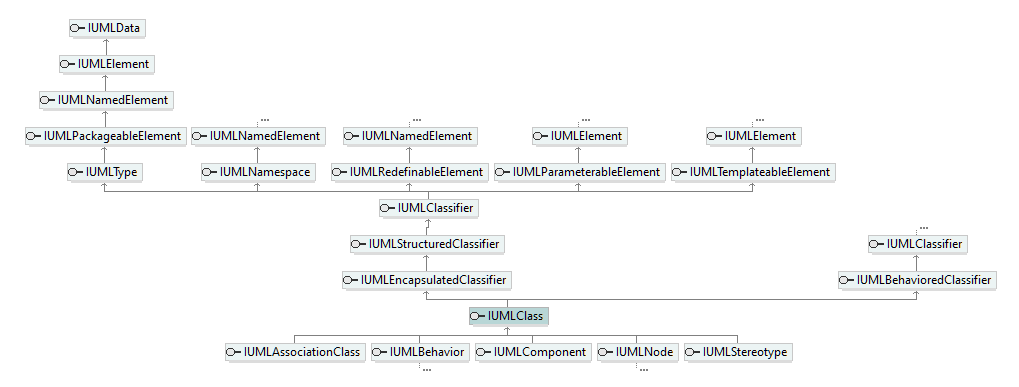

hierarchy

typedElements

Interface IUMLClassifier	Operation	Class
Interface IUMLDataAll	Operation	Class
Interface IUMLOperation	Operation	Class
Interface IUMLProperty	Operation	Class
Interface IUMLReception	Operation	Class

Operation IUMLClass::CodeFileNameCount

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int

Operation IUMLClass::EraseCodeFileNameAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	void

Operation IUMLClass::GetCodeFileName

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	string

Operation IUMLClass::GetCodeFilePath

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	string

documentation

get the full code file path

Operation IUMLClass::InsertCodeFileNameAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
strNewVal	in	string
return	return	void

Operation IUMLClass::InsertNestedClassifierAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
strKind	in	string
return	return	IUMLClassifier

Operation IUMLClass::InsertOwnedOperationAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	IUMLOperation

Operation IUMLClass::InsertOwnedReceptionAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	IUMLReception

Operation IUMLClass::IsActive

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLClass::NestedClassifiers

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLClassifier.

Operation IUMLClass::OwnedOperations

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLOperation.

Operation IUMLClass::OwnedReceptions

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

Operation IUMLClass::SetCodeFileName

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
strNewVal	in	string
return	return	void

Operation IUMLClass::SuperClasses

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLClass.

Operation IUMLClass::WasUsedForCodeSynchronization

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool
