UModelAPI - IUMLElement

Home Prev Top Next

Interface IUMLElement

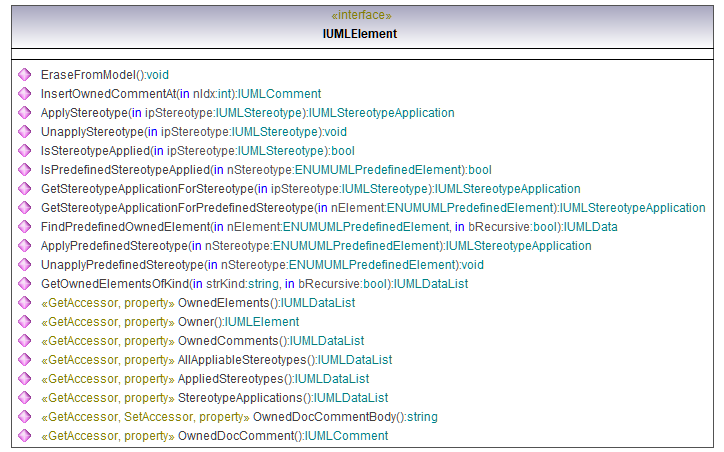

diagram

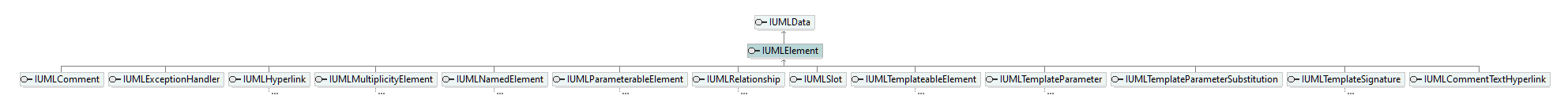

hierarchy

typedElements

Interface IGenerateSequenceDiagramDlg	Operation	DiagramOwner
Interface IUMLComment	Operation	InsertAnnotatedElementAt OwningElement
Interface IUMLConstraint	Operation	InsertConstrainedElementAt
Interface IUMLDataAll	Operation	AppliedElement Element InsertAnnotatedElementAt InsertConstrainedElementAt InsertPackagedElementRelationshipAt IsElementVisible LinkedOwner Owner OwningElement SetElementVisible TextLabelElement
Interface IUMLElement	Operation	Owner
Interface IUMLGuiDiagram	Operation	LinkedOwner
Interface IUMLGuiLink	Operation	Element
Interface IUMLGuiNodeLink	Operation	IsElementVisible SetElementVisible
Interface IUMLGuiTextLabel	Operation	TextLabelElement
Interface IUMLPackage	Operation	InsertPackagedElementRelationshipAt
Interface IUMLStereotypeApplication	Operation	AppliedElement

Operation IUMLElement::AllAppliableStereotypes

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLStereotype.

Operation IUMLElement::AppliedStereotypes

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLStereotype.

Operation IUMLElement::ApplyPredefinedStereotype

parameter

name	direction	type	type modifier	multiplicity	default
nStereotype	in	ENUMUMLPredefinedElement
return	return	IUMLStereotypeApplication

Operation IUMLElement::ApplyStereotype

parameter

name	direction	type	type modifier	multiplicity	default
ipStereotype	in	IUMLStereotype
return	return	IUMLStereotypeApplication

Operation IUMLElement::EraseFromModel

parameter

name	direction	type	type modifier	multiplicity	default
return	return	void

documentation

Use this function to erase the element from the model and all diagrams.

Use IUMLGuiDiagram::EraseFromDiagram to erase from diagram only.

Operation IUMLElement::FindPredefinedOwnedElement

parameter

name	direction	type	type modifier	multiplicity	default
nElement	in	ENUMUMLPredefinedElement
bRecursive	in	bool
return	return	IUMLData

Operation IUMLElement::GetOwnedElementsOfKind

parameter

name	direction	type	type modifier	multiplicity	default
strKind	in	string
bRecursive	in	bool
return	return	IUMLDataList

documentation

get all owned elements of the specified kind (strKind)

Operation IUMLElement::GetStereotypeApplicationForPredefinedStereotype

parameter

name	direction	type	type modifier	multiplicity	default
nElement	in	ENUMUMLPredefinedElement
return	return	IUMLStereotypeApplication

Operation IUMLElement::GetStereotypeApplicationForStereotype

parameter

name	direction	type	type modifier	multiplicity	default
ipStereotype	in	IUMLStereotype
return	return	IUMLStereotypeApplication

Operation IUMLElement::InsertOwnedCommentAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	IUMLComment

Operation IUMLElement::IsPredefinedStereotypeApplied

parameter

name	direction	type	type modifier	multiplicity	default
nStereotype	in	ENUMUMLPredefinedElement
return	return	bool

Operation IUMLElement::IsStereotypeApplied

parameter

name	direction	type	type modifier	multiplicity	default
ipStereotype	in	IUMLStereotype
return	return	bool

Operation IUMLElement::OwnedComments

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLComment.

Operation IUMLElement::OwnedDocComment

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLComment

Operation IUMLElement::OwnedDocCommentBody

parameter

name	direction	type	type modifier	multiplicity	default
return	return	string

Operation IUMLElement::OwnedElements

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLElement.

Operation IUMLElement::Owner

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLElement

Operation IUMLElement::StereotypeApplications

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLStereotypeApplication.

Operation IUMLElement::UnapplyPredefinedStereotype

parameter

name	direction	type	type modifier	multiplicity	default
nStereotype	in	ENUMUMLPredefinedElement
return	return	void

Operation IUMLElement::UnapplyStereotype

parameter

name	direction	type	type modifier	multiplicity	default
ipStereotype	in	IUMLStereotype
return	return	void
