UModelAPI - IUMLInterface

Home Prev Top Next

Interface IUMLInterface

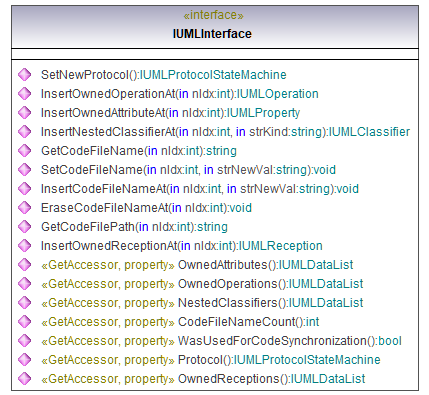

diagram

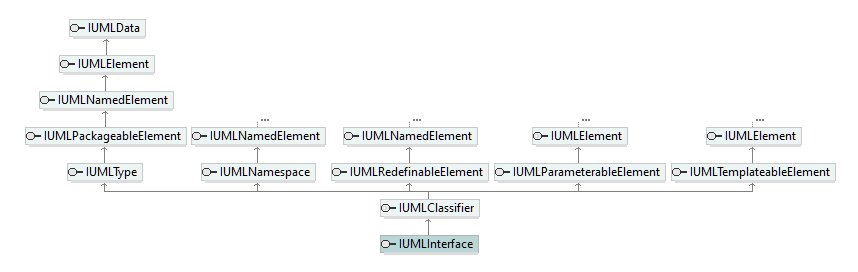

hierarchy

typedElements

Interface IUMLBehavioredClassifier	Operation	InsertInterfaceRealizationAt
Interface IUMLClassifier	Operation	NestingInterface
Interface IUMLDataAll	Operation	Contract InsertInterfaceRealizationAt Interface NestingInterface
Interface IUMLInterfaceRealization	Operation	Contract
Interface IUMLOperation	Operation	Interface
Interface IUMLProperty	Operation	Interface
Interface IUMLProtocolStateMachine	Operation	Interface
Interface IUMLReception	Operation	Interface

Operation IUMLInterface::CodeFileNameCount

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int

Operation IUMLInterface::EraseCodeFileNameAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	void

Operation IUMLInterface::GetCodeFileName

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	string

Operation IUMLInterface::GetCodeFilePath

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	string

documentation

get the full code file path

Operation IUMLInterface::InsertCodeFileNameAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
strNewVal	in	string
return	return	void

Operation IUMLInterface::InsertNestedClassifierAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
strKind	in	string
return	return	IUMLClassifier

Operation IUMLInterface::InsertOwnedAttributeAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	IUMLProperty

Operation IUMLInterface::InsertOwnedOperationAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	IUMLOperation

Operation IUMLInterface::InsertOwnedReceptionAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	IUMLReception

Operation IUMLInterface::NestedClassifiers

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLClassifier.

Operation IUMLInterface::OwnedAttributes

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLProperty.

Operation IUMLInterface::OwnedOperations

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLOperation.

Operation IUMLInterface::OwnedReceptions

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

Operation IUMLInterface::Protocol

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLProtocolStateMachine

Operation IUMLInterface::SetCodeFileName

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
strNewVal	in	string
return	return	void

Operation IUMLInterface::SetNewProtocol

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLProtocolStateMachine

Operation IUMLInterface::WasUsedForCodeSynchronization

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool
