UModelAPI - IUMLTransition

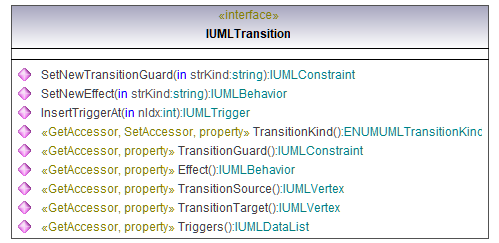

Interface IUMLTransition

diagram

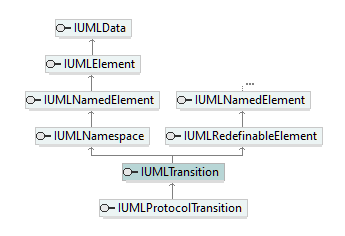

hierarchy

typedElements

Interface IUMLDataAll	Operation	InsertTransitionAt
Interface IUMLRegion	Operation	InsertTransitionAt

Operation IUMLTransition::Effect

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLBehavior

Operation IUMLTransition::InsertTriggerAt

parameter

Operation IUMLTransition::SetNewEffect

parameter

Operation IUMLTransition::SetNewTransitionGuard

parameter

Operation IUMLTransition::TransitionGuard

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLConstraint

Operation IUMLTransition::TransitionKind

parameter

name	direction	type	type modifier	multiplicity	default
return	return	ENUMUMLTransitionKind

Operation IUMLTransition::TransitionSource

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLVertex

Operation IUMLTransition::TransitionTarget

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLVertex

Operation IUMLTransition::Triggers

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLTrigger.
