UModelAPI - IUMLMessage

Interface IUMLMessage

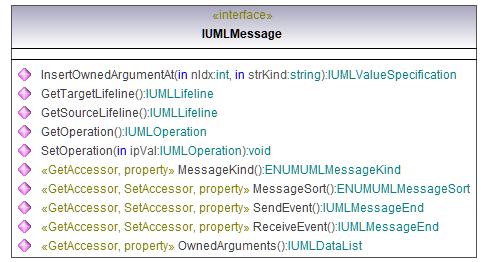

diagram

hierarchy

typedElements

Operation IUMLMessage::GetOperation

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLOperation

Operation IUMLMessage::GetSourceLifeline

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLLifeline

Operation IUMLMessage::GetTargetLifeline

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLLifeline

Operation IUMLMessage::InsertOwnedArgumentAt

parameter

Operation IUMLMessage::MessageKind

parameter

name	direction	type	type modifier	multiplicity	default
return	return	ENUMUMLMessageKind

Operation IUMLMessage::MessageSort

parameter

name	direction	type	type modifier	multiplicity	default
return	return	ENUMUMLMessageSort

Operation IUMLMessage::OwnedArguments

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLValueSpecification.

Operation IUMLMessage::ReceiveEvent

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLMessageEnd

Operation IUMLMessage::SendEvent

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLMessageEnd

Operation IUMLMessage::SetOperation

parameter
