Overriding Base Class Operations and Implementing Interface Operations

Home Prev Top Next

UModel gives you the ability to override the base-class operations, or implement interface operations of a class. This can be done from the Model Tree, Favorites tab, or in Class diagrams.

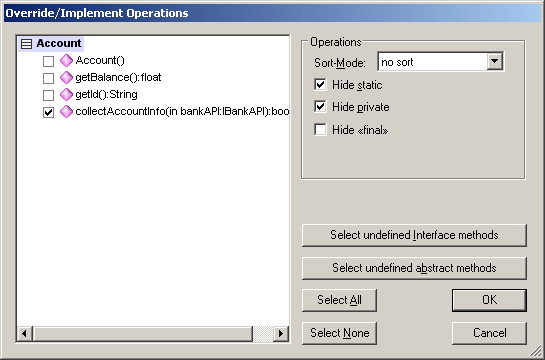

1.Right-click one of the derived classes in the class diagram, e.g. CheckingAccount, and select Override/Implement Operations. This opens the dialog box shown below.


2.Select the Operations that you want to override and confirm with OK. The "Select undefined..." buttons select those method types in the window at left.


Note:When the dialog box is opened, operations of base classes and implemented interfaces that have the same signature as existing operations, are automatically checked (i.e. active).
