Viewing Element Relationships

Home Prev Top Next

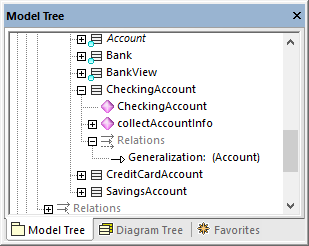

By default, the relationships of an element are visible in the Model Tree window under that specific element. For example, the CheckingAccount class illustrated below has a Generalization relationship with the Account class:

um_show_relations

Relationship in the Model Tree window

Note:To hide relationships from the Model Tree window, right-click inside the window and clear the Show Relations in Tree option.



To show the relationships of an element on the diagram, right-click the element on the diagram, and select Show | <relationship kind> from the context menu.
