Altova Authentic 2024 Desktop

The Validation section enables you to specify options for validating XML documents.




Authentic Desktop can cache DTD and XML Schema files in memory to save unnecessary reloading (for example, when the schema is not local but is accessed via a URL). Note, however, that if you use cached versions of schemas, changes you make to your schema will not be immediately reflected when you validate; in this case, you would need to reload the XML file or restart Authentic Desktop.


Schema Version

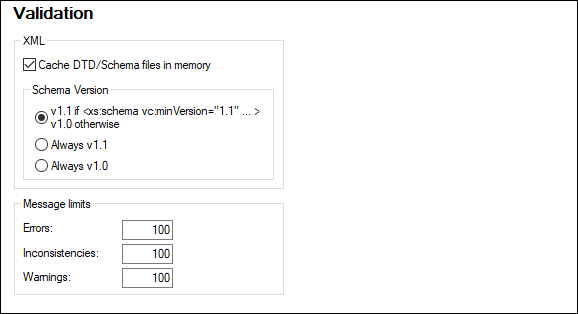

The XSD mode that is enabled in Schema View depends on both (i) the presence/absenceand, if present, the valueof the /xs:schema/@vc:minVersion attribute of the XSD document, and (ii) the XML Schema Version option selected in the File section of the Options dialog (Tools | Options, screenshot below).


The following situations are possible. XML Schema Version in the table below refers to the selection in the XML Schema Version pane shown above. The vc:minVersion values in the table refer to the value of the xs:schema/@vc:minVersion attribute in the XML Schema document.


XML Schema Version

vc:minVersion attribute

XSD mode

Always v1.0

Is absent, or is present with any value


Always v1.1

Is absent, or is present with any value


Value of @vc:minVersion

Attribute has value of 1.1


Value of @vc:minVersion

Attribute is absent, or attribute is present with a value other than 1.1



Message limits

These options enable you to set separate limits for the number of errors, XBRL inconsistencies, and warnings that are displayed. The default number for each category is 100. Change it to the number you want.


Save and exit

After making the settings, click OK to finish.
