Altova DatabaseSpy 2022 Professional Edition

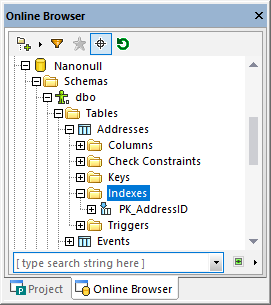

Indexes are database objects that make queries of a database considerably faster; they are typically associated with one or more columns. In the Online Browser, indexes are displayed in the "Indexes" folder of a table. To view the index properties in detail, select an index and view the properties in the Properties window.

dbs_indexes_online_browser

The type of an index is indicated by the following icons:



ds_ic_non_clustered_index

Non-clustered index

ds_ic_clustered_primary_index

Clustered index created by a primary key constraint

ds_ic_unique_index

Unique non-clustered index

ds_ic_xml_index

XML index (available only for columns of XML type)

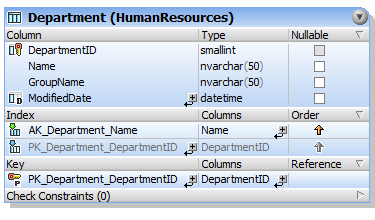

In the Design Editor, indexes are shown in the "Index" section of the table design. Here you see at a glance which columns are included in the index definition, and whether they will be queried in ascending or descending order. Indexes generated automatically are shown as grayed out and cannot be modified.

ds_indexes

Table indexes in Design Editor
