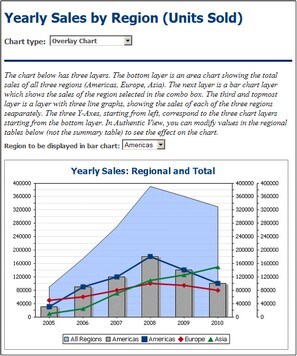

Overlay charts (screenshot below) enable you to combine multiple charts of different types. The following charts can be combined:

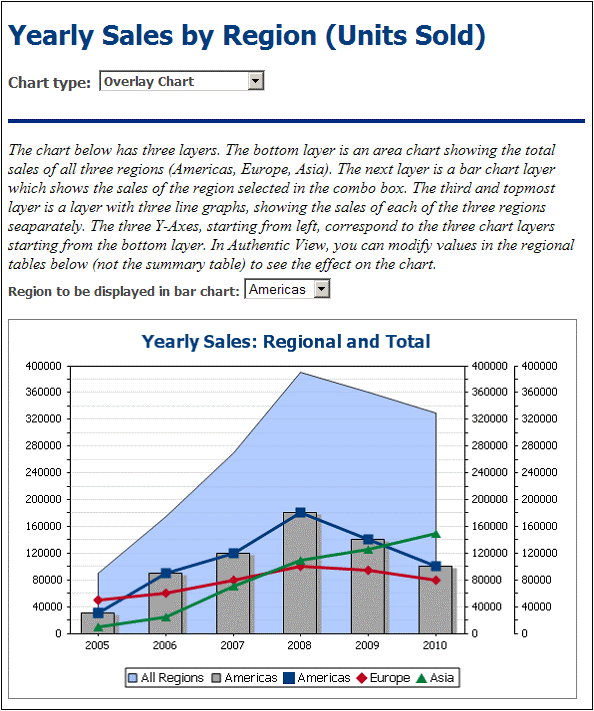

An overlay chart (shown in the screenshot above) is contained in the SPS file YearlySales.sps. The SPS design is based on the XML Schema YearlySales.xsd and it uses YearlySales.xml as its Working XML File. All three files are located in the (My) Documents folder, C:\Documents and Settings\<username>\My Documents\Altova\StyleVision2020\StyleVisionExamples/Tutorial/Charts.
After opening the SPS file in StyleVision, switch to Authentic Preview, and, in the Chart Type combo box (screenshot below), select Overlay Charts to see the overlay chart shown above.
An overlay chart is created by selecting the Multiple Layers radio button in the Chart Configuration dialog (see screenshot below). A main layer is automatically created. You can select the type of chart for the main layer and then make the chart settings and data selection in the usual way.

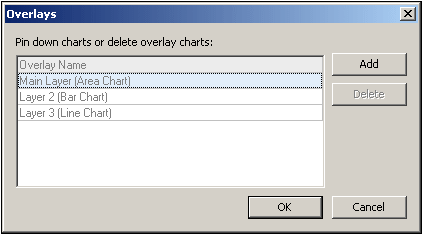

You can add new layers to an overlay chart and delete layers. To do this, click the Manage button in the Chart Configuration dialog (see screenshot above). This pops up the Overlays dialog (screenshot below). Click Add to add a new layer. To delete a layer, select a layer and click Delete.
You should note that when a layer is placed over another, it will obscure the layers beneath it. Since only area charts can be made transparent, some layer arrangements might not be optimal. For example a bar chart that is layered over a line chart would obscure parts of the lines. You should keep this in mind when planning the layering order.
The data selection for each chart depends on the chart type and is done in the usual ways for each chart type. See the sections, Chart Data Selection: Simple and Chart Data Selection: Flexible for an overview of chart data selection, and the respective example sections for details about chart data selection for individual chart types.
The following general points relating to overlay charts are important and should be noted:
•The X-Axis for all chart layers is common and is the X-Axis specified in the main layer. If this X-Axis definition cannot be evaluated for another chart, then that chart will not be drawn. X-Axes specified in chart definitions of other layers are ignored.
•The Y-Axes series for each chart are selected separately. The Y-Axes of each layer is drawn parallel to each other, starting from the left for the bottom-most layer (the main layer) and proceeding to right with each layer. Note that a label can be specified for each Y-Axis, in its chart settings.
The following chart settings are relevant:
•The title of the chart is specified in the Chart Title setting of the main layer.
•X-Axis settings are specified in the settings for the main layer.
•Y-Axis labels can be set for each chart separately.
•Y-Axis start points (minimum) and end points (maximum), as well as the tick intervals, can be specified for each chart separately. This enables axes to be calibrated relative to each other.
•The colors of series in each chart can be selected separately.
