UModelAPI - IUMLGuiWaypoint

Home Prev Top Next

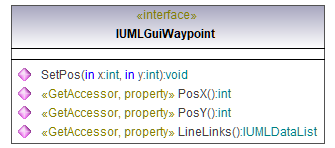

Interface IUMLGuiWaypoint

diagram

hierarchy

typedElements

Interface IUMLDataAll	Operation	InsertWaypointAt
Interface IUMLGuiLineLink	Operation	InsertWaypointAt

documentation

A IUMLGuiWaypoint is a part of a IUMLGuiLineLink which defines the position of one point of a line. There are several subtypes of this interface which for example make it possible to attach text labels or lines to a waypoint or line.

Operation IUMLGuiWaypoint::LineLinks

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

Operation IUMLGuiWaypoint::PosX

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int

Operation IUMLGuiWaypoint::PosY

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int

Operation IUMLGuiWaypoint::SetPos

parameter

name	direction	type	type modifier	multiplicity	default
x	in	int
y	in	int
return	return	void
