UModelAPI - IUMLGuiSubDiagramNode

Home Prev Top Next

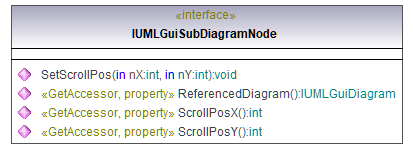

Interface IUMLGuiSubDiagramNode

diagram

hierarchy

documentation

The sub diagram node represents a node link on a diagram which again includes another diagram. This is used for example on interaction overview diagrams to display sequence, communication and timing diagrams inside nodes.

The property ReferencedDiagram controls the diagrams which is shown inside the node.

Operation IUMLGuiSubDiagramNode::ReferencedDiagram

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLGuiDiagram

Operation IUMLGuiSubDiagramNode::ScrollPosX

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int

Operation IUMLGuiSubDiagramNode::ScrollPosY

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int

Operation IUMLGuiSubDiagramNode::SetScrollPos

parameter

name	direction	type	type modifier	multiplicity	default
nX	in	int
nY	in	int
return	return	void
