UModelAPI - IUMLActivityNode

Interface IUMLActivityNode

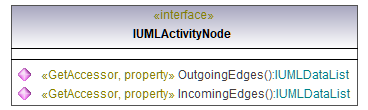

diagram

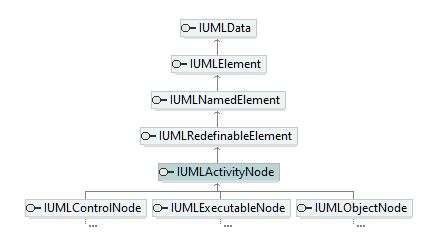

hierarchy

typedElements

Interface IUMLActivity	Operation	InsertActivityEdgeAt InsertActivityNodeAt
Interface IUMLActivityEdge	Operation	Source Target
Interface IUMLActivityPartition	Operation	InsertNodeAt
Interface IUMLDataAll	Operation	InsertActivityEdgeAt InsertActivityNodeAt InsertNodeAt Source Target
Interface IUMLInterruptibleActivityRegion	Operation	InsertNodeAt
Interface IUMLStructuredActivityNode	Operation	InsertNodeAt

Operation IUMLActivityNode::IncomingEdges

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLActivityEdge.

Operation IUMLActivityNode::OutgoingEdges

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLActivityEdge.
