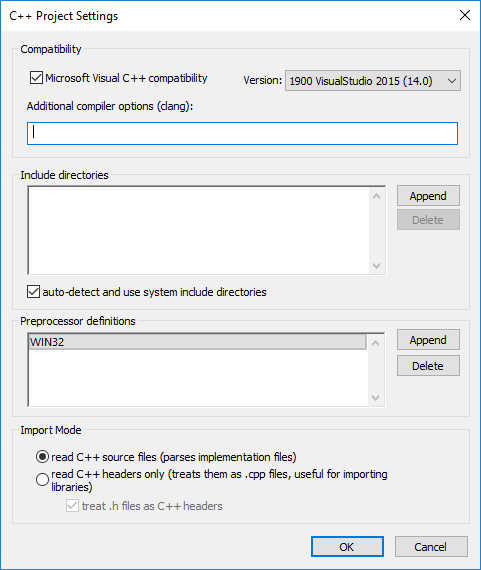

This option is applicable only when importing C++ code compiled with Visual Studio; it lets you specify the Microsoft Visual C++ compiler compatibility. Set this to the compiler version (code dialect) used by your Visual Studio C++ project. Be aware that this setting refers to the code dialect of the source code files; the Visual Studio project (or solution) itself must be saved with Visual Studio 2010 or later to qualify for import. To import source code authored in an IDE other than Visual Studio, use the Project | Import Source Directory command.

Internally, UModel uses the clang compiler version 3.8 to read C++ code. Additional code parsing options can be specified in this text box if necessary (if applicable to UModel), see also clang documentation (http://releases.llvm.org/3.8.1/tools/docs/UsersManual.html#command-line-options).

Use this option to specify any additional directories where UModel should look for C++ classes when reverse engineering the C++ code. Specifying include directories is optional if the source project is a Visual Studio project.

If you select the auto-detect and use system include directories check box, UModel will attempt to detect any include directories defined system-wide, in addition to those explicitly mentioned in this dialog box.

It is also possible to define the include directories paths from the UMODEL_CPP_INCLUDE system environment variable, see Reverse engineering C++ projects. In this case, the include directories defined in the UMODEL_CPP_INCLUDE system environment variable will replace those which would otherwise be included if the auto-detect and use system include directories check box is selected.

Use this option to specify any C++ preprocessor directives required to compile the code. If the source project is a Visual Studio project, the preprocessor directives are detected automatically.

The option read C++ source files will parse all files of the source project. This is the default option. If you want to import only C++ libraries, select the option read C++ headers only, which will also make the import operation faster.


By default, .h files are treated as C++ headers. Clear the check box treat .h files as C++ headers if the source project is using another extension for header files.

Select this check box to convert comments found in the C# code into UModel element documentation (see also Documentation).

This check box is enabled by default. If your C# or VB.NET code contains namespace or class aliases like in the code listing below, it is recommended to keep this check box selected. Otherwise, associations and dependencies involving aliased classes and namespaces in your code may not be detected automatically by UModel during the import (and thus would not be present in the model).

Example of an alias in C# code

During the source code import, any potentially conflicting aliases are added to the "Unknown externals" package of the UModel project if their use is unclear.

When you update the code back from the model (round-trip engineering), aliases will be retained as they exist in the generated code.

The Resolve aliases option can be changed at any time later, see Code Synchronization Settings. If you enable this option after (not before) the import operation, UModel prompts you to update the project from the code again, since the option also has consequences for forward engineering.

If your C# or VB.NET code includes symbols that are defined through preprocessor directives such as #if, #endif, you can instruct UModel to take them into account while reverse engineering code.

Example of a conditional compilation symbol in C# code

For example, if you reverse engineer the code above, the method DisplayMessage() will only be imported into the model if you specified the DEBUG symbol.

To specify conditional compilation symbols, enter them in the "Defined symbols" text box, delimited by a semicolon.

During the reverse engineering process, UModel outputs all symbols used in the source code in the Messages window.

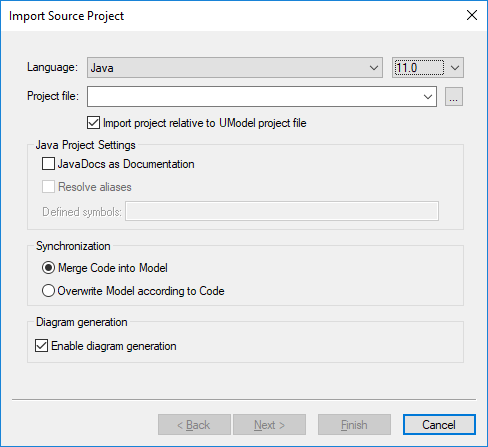

Select this check box to convert JavaDocs-style comments found in the code into UModel element documentation (see also Documentation).

Note: Only comments applicable for Java classes, interfaces, operations, and properties are converted.
