The InteractionUse ic-interact-use element is a reference to an interaction element. This element allows you to share portions of an interaction between several other interactions.

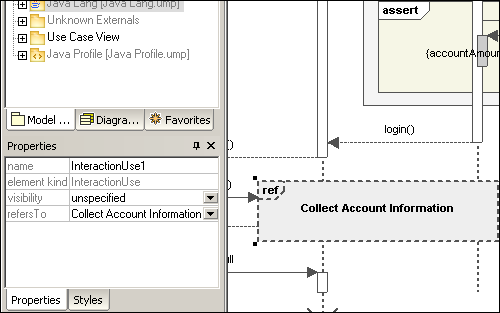

sd-int-use1

Clicking the "refersTo" combo box, allows you to select the interaction that you want to refer to. The name of the interaction use you select appears in the element.



Note:You can also drag an existing Interaction Use element from the Model Tree into the diagram tab.
