You can also generate a sequence diagram from getter/setter properties (in C#, VB .NET), as follows:

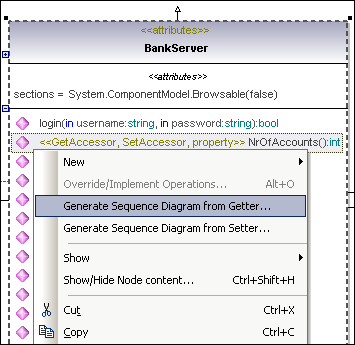

1.Right-click an Operation with a GetAccessor/SetAccessor stereotype.

seq-getSet

2.Select Generate Sequence Diagram from Getter/Setter from the context menu. This opens a dialog box where you can specify the sequence diagram generation options.

3.Click OK to generate the Sequence Diagram.
