Non-XDT Segments and Scenarios

Home Prev Top Next

Templates of non-XDT segments and scenarios are created via the Insert XBRL Element command of the Design View context menu. The template is created as empty template in open mode. You can switch to closed mode via the Template Behavior | Closed Mode command of the template's context menu.



The non-XDT component template (segment or scenario) can then be used as follows:

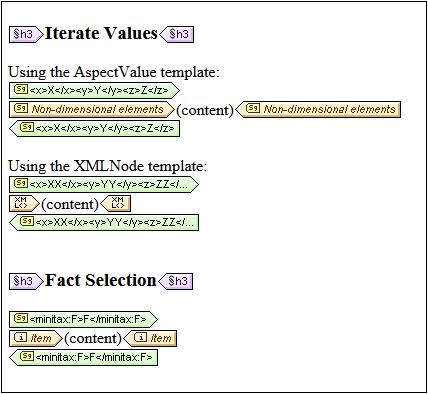

The contents of the non-XDT component template can be returned by using either the aspect value template Non-dimensional elements (first template in the screenshot below) or the XML Node template.

The third template in the screenshot below selects all facts that contain the non-dimensional data defined in the Non-XDT template.



XBRLClosedModeNonXDTSegmentTemplates
