UModel API

UModelAPI - IUMLConstraint

Interface IUMLConstraint

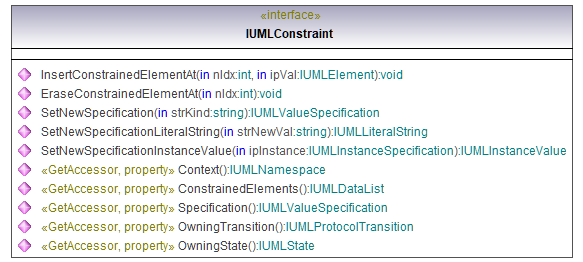

diagram

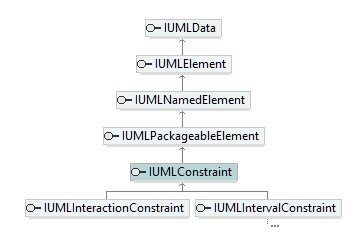

hierarchy

typedElements

Interface IUMLAction	Operation	InsertLocalPostConditionAt InsertLocalPreConditionAt
Interface IUMLBehavior	Operation	InsertPostconditionAt InsertPreconditionAt
Interface IUMLDataAll	Operation	InsertLocalPostConditionAt InsertLocalPreConditionAt InsertOwnedRuleAt InsertPostconditionAt InsertPreconditionAt Invariant OwningConstraint PostCondition PreCondition SetNewInvariant SetNewPostCondition SetNewPreCondition SetNewStateInvariant SetNewTransitionGuard StateInvariant TransitionGuard
Interface IUMLNamespace	Operation	InsertOwnedRuleAt
Interface IUMLProtocolTransition	Operation	PostCondition PreCondition SetNewPostCondition SetNewPreCondition
Interface IUMLState	Operation	SetNewStateInvariant StateInvariant
Interface IUMLStateInvariant	Operation	Invariant SetNewInvariant
Interface IUMLTransition	Operation	SetNewTransitionGuard TransitionGuard
Interface IUMLValueSpecification	Operation	OwningConstraint

Operation IUMLConstraint::ConstrainedElements

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLElement.

Operation IUMLConstraint::Context

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLNamespace

Operation IUMLConstraint::EraseConstrainedElementAt

parameter

Operation IUMLConstraint::InsertConstrainedElementAt

parameter

Operation IUMLConstraint::OwningState

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLState

Operation IUMLConstraint::OwningTransition

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLProtocolTransition

Operation IUMLConstraint::SetNewSpecification

parameter

Operation IUMLConstraint::SetNewSpecificationInstanceValue

parameter

name	direction	type	type modifier	multiplicity	default
ipInstance	in	IUMLInstanceSpecification
return	return	IUMLInstanceValue

Operation IUMLConstraint::SetNewSpecificationLiteralString

parameter

Operation IUMLConstraint::Specification

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLValueSpecification
