Interface IUMLTransition

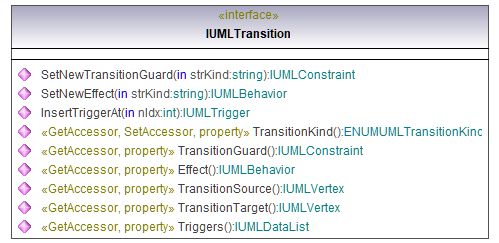

diagram

UModelAPI_diagrams/UModelAPI_p575.png

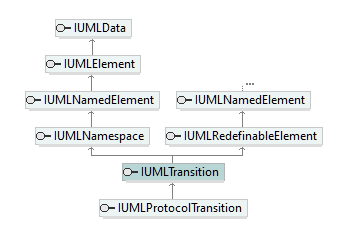

hierarchy

UModelAPI_diagrams/UModelAPI_p576.png

typedElements

Interface IUMLDataAll	Operation	InsertTransitionAt
Interface IUMLRegion	Operation	InsertTransitionAt

Operation IUMLTransition::Effect

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLBehavior

Operation IUMLTransition::InsertTriggerAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	IUMLTrigger

Operation IUMLTransition::SetNewEffect

parameter

name	direction	type	type modifier	multiplicity	default
strKind	in	string
return	return	IUMLBehavior

Operation IUMLTransition::SetNewTransitionGuard

parameter

name	direction	type	type modifier	multiplicity	default
strKind	in	string
return	return	IUMLConstraint

Operation IUMLTransition::TransitionGuard

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLConstraint

Operation IUMLTransition::TransitionKind

parameter

name	direction	type	type modifier	multiplicity	default
return	return	ENUMUMLTransitionKind

Operation IUMLTransition::TransitionSource

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLVertex

Operation IUMLTransition::TransitionTarget

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLVertex

Operation IUMLTransition::Triggers

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLTrigger.
