Interface IUMLBehavior

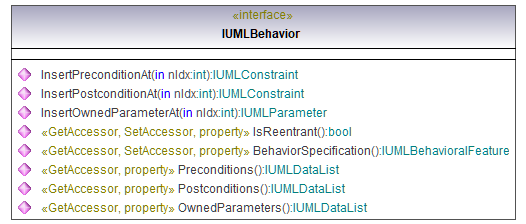

diagram

UModelAPI_diagrams/UModelAPI_p134.png

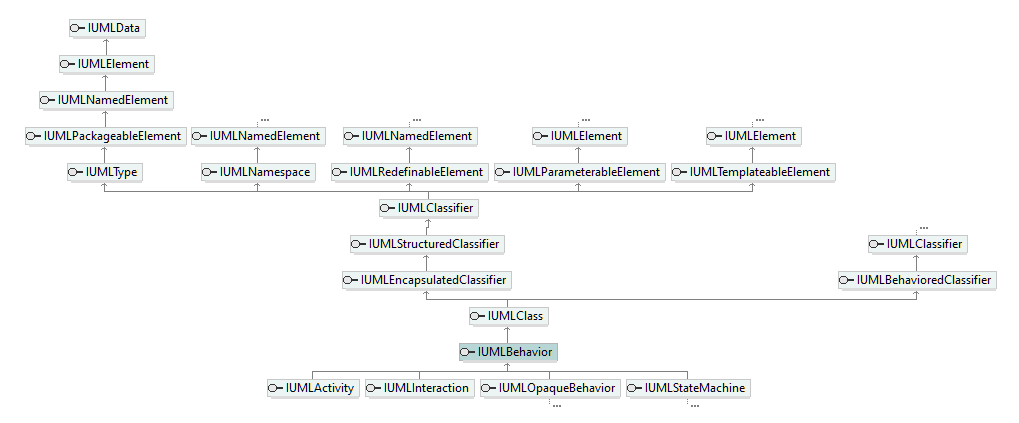

hierarchy

UModelAPI_diagrams/UModelAPI_p135.png

typedElements

Interface IUMLBehavioredClassifier	Operation	InsertOwnedBehaviorAt
Interface IUMLBehaviorExecutionSpecification	Operation	BehaviorExecution
Interface IUMLCallBehaviorAction	Operation	Behavior
Interface IUMLDataAll	Operation	Behavior BehaviorExecution DecisionInput DoActivity Effect Entry Exit InsertOwnedBehaviorAt Selection SetNewDoActivity SetNewEffect SetNewEntry SetNewExit Transformation
Interface IUMLDecisionNode	Operation	DecisionInput
Interface IUMLObjectFlow	Operation	Transformation
Interface IUMLObjectNode	Operation	Selection
Interface IUMLState	Operation	DoActivity Entry Exit SetNewDoActivity SetNewEntry SetNewExit
Interface IUMLTransition	Operation	Effect SetNewEffect

Operation IUMLBehavior::BehaviorSpecification

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLBehavioralFeature

Operation IUMLBehavior::InsertOwnedParameterAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	IUMLParameter

Operation IUMLBehavior::InsertPostconditionAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	IUMLConstraint

Operation IUMLBehavior::InsertPreconditionAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	IUMLConstraint

Operation IUMLBehavior::IsReentrant

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLBehavior::OwnedParameters

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLParameter.

Operation IUMLBehavior::Postconditions

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLConstraint.

Operation IUMLBehavior::Preconditions

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLConstraint.
