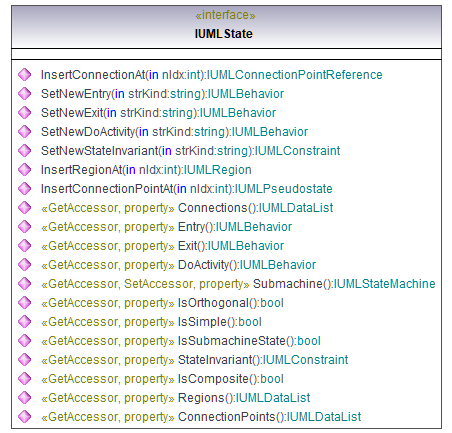

Interface IUMLState

diagram

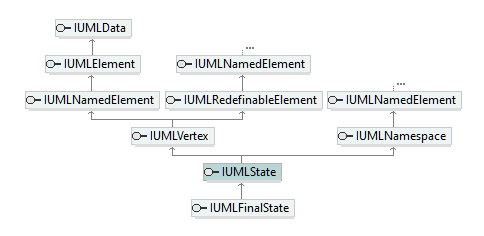

hierarchy

typedElements

Interface IUMLConnectionPointReference	Operation	State
Interface IUMLConstraint	Operation	OwningState
Interface IUMLDataAll	Operation	InsertInStateAt OwningState State
Interface IUMLObjectNode	Operation	InsertInStateAt
Interface IUMLPseudostate	Operation	State
Interface IUMLRegion	Operation	State

Operation IUMLState::ConnectionPoints

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLPseudostate.

Operation IUMLState::Connections

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLConnectionPointReference.

Operation IUMLState::DoActivity

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLBehavior

Operation IUMLState::Entry

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLBehavior

Operation IUMLState::Exit

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLBehavior

Operation IUMLState::InsertConnectionAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	IUMLConnectionPointReference

Operation IUMLState::InsertConnectionPointAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	IUMLPseudostate

Operation IUMLState::InsertRegionAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	IUMLRegion

Operation IUMLState::IsComposite

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLState::IsOrthogonal

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLState::IsSimple

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLState::IsSubmachineState

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLState::Regions

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLRegion.

Operation IUMLState::SetNewDoActivity

parameter

name	direction	type	type modifier	multiplicity	default
strKind	in	string
return	return	IUMLBehavior

Operation IUMLState::SetNewEntry

parameter

name	direction	type	type modifier	multiplicity	default
strKind	in	string
return	return	IUMLBehavior

Operation IUMLState::SetNewExit

parameter

name	direction	type	type modifier	multiplicity	default
strKind	in	string
return	return	IUMLBehavior

Operation IUMLState::SetNewStateInvariant

parameter

name	direction	type	type modifier	multiplicity	default
strKind	in	string
return	return	IUMLConstraint

Operation IUMLState::StateInvariant

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLConstraint

Operation IUMLState::Submachine

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLStateMachine
