Deploy GDPR Compliance Database

Home Prev Top Next

The Altova GDPR Compliance Database and its User Management app, together with associated files, are delivered as a zipped archive that is downloadable from the Altova website. The zipped archive contains:


GDPR.mtp, which is a MobileTogether package containing the compliance database solution and its data files

GDPR Users.mtp, which is a MobileTogether package containing the GDPR user management app and its data files

Additional files and folders; these will not be deployed to the server but must, instead, be copied to the server.


Deployment steps

Deployment consists of the following steps:


1.Unzip the zipped archive to a suitable location on your network

2.Deploy the MobileTogether packages GDPR.mtp and GDPR Users.mtp to MobileTogether Server

3.Copy all the other files and folders in the unzipped archive to MobileTogether Server


Deploy the GDPR MobileTogether packages (.mtp files)

To deploy the compliance database and its user management app to MobileTogether Server do the following:


1.Start the MobileTogether Server administrator interface via the URL: http://<mts-ipaddress>:8085, and log in (see Important Information for credentials).

2.In the Workflows tab of MobileTogether Server, click Create Container and create a container named, say, dataInformation directly under the root. This is the container on the server where you will deploy the solution. Alternatively, you can deploy to any other container you like. If you wish to deploy the solution to the already existing public container, then you do not need to create a new container. (For more information about how to do this, see the MobileTogether Server user manual.)

3.In MobileTogether Designer, open the package file GDPR.mtp.

4.You will be asked whether you want to deploy the file. Click Yes. (If you need to, you can always deploy via the menu command File | Deploy to MobileTogether Server.)

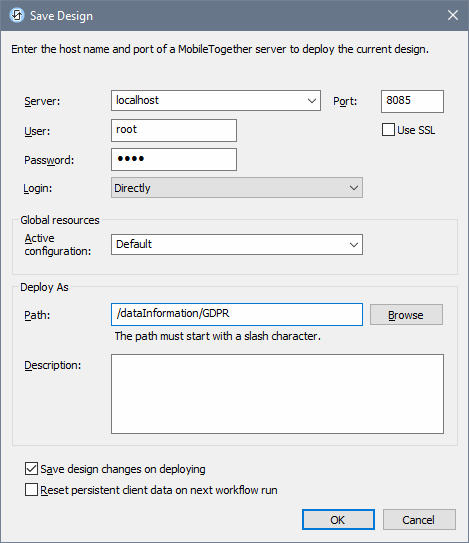

5.In the dialog that appears (screenshot below), enter the IP address or network name of the machine hosting MobileTogether Server, the port number 8085 (which is the port number for administrator access to MobileTogether Server), and your login details.

Click to expand/collapse

6.In the Path field (see screenshot above), select a suitable folder on the server to which to deploy. You can browse for the folder (aka container) that you want. Note that you can create new containers on the server (see point 2 above).

7.Click OK to deploy.

8.In MobileTogether Designer, open the the package file GDPR Users.mtp, and deploy it to the same folder/container on MobileTogether Server as that to which GDPR.mtp was deployed.


The compliance database and its user management app have now been deployed to MobileTogether Server. All you need to do to complete the deployment is to copy additional resources to the server (described below).


Copy the SampleData and Reports folders to the server

To complete the deployment of the system you need to copy all the other files and folders from the unzipped archive—other than the two package files—to the Server-side solution's working directory of MobileTogether Server. Do this as follows:


1.In MobileTogether Server, go to the Settings | Sources tab (see MobileTogether Server user manual) and note the currently selected solution's working directory.

2.Copy all the files and folders in the top-level directory of the unzipped archive, except the two package files, to the server-side solution's working directory (refer also to Important Information).


Note:You can define any folder on the server to be the Server-side solution's working directory, and copy the resources to this location. Note, however, that this location will be the working directory of all MobileTogether workflows that are deployed on this server.


This completes the deployment of the Compliance Database and its User Management app. You can now start the compliance database or its user management app.


Your first step would be to define the users and other settings of the Compliance Database. How to do this is described in the User Guide.
